Product Details

Description



Features:

• Single 5 V ( 10%)
• Access time: 50 ns/60 ns/70 ns (max)
• Power dissipation
  Active mode : 495 mW/440 mW/385 mW (max) (HM5116400 Series)
  : 550 mW/495 mW/440 mW (max) (HM5117400 Series)
  Standby mode : 11 mW (max)
  : 0.83 mW (max) (L-version)
• Fast page mode capability
• Long refresh period
4096 refresh cycles : 64 ms (HM5116400 Series)
  : 128 ms (L-version)
  2048 refresh cycles : 32 ms (HM5117400 Series)
  : 128 ms (L-version)
• 3 variations of refresh
-only refresh
-before- refresh
  Hidden refresh
• Battery backup operation (L-version)
• Test function
  16-bit parallel test mode

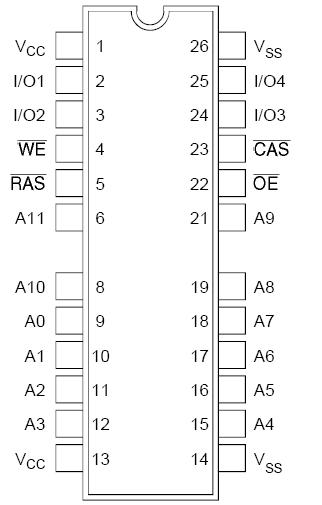

Pinout

Connection Diagram


Specifications

Parameter Symbol Value Unit
Voltage on any pin relative to VSS VT 1.0 to +7. V
Supply voltage relative to VSS VCC 1.0 to +7. V
Short circuit output current Iout 50 mA
Power dissipation PT 1.0 W
Operating temperature Topr 0 to +70 °C
Storage temperature Tstg 55 to +125 °C



Description

The Hitachi HM5116400 Series, HM5117400 Series are CMOS dynamic RAMs organized 4,194,304-word 4-bit. They employ the most advanced 0.5 m CMOS technology for high performance and low power. The HM5116400 Series, HM5117400 Series offer Fast Page Mode as a high speed access mode. They have package variations of standard 300-mil 26-pin plastic SOJ and standard 300-mil 26-pin plastic TSOP.
