Product Details

Description



Features:

·  Single 5 V (±10%)
·  Access time: 60 ns/70 ns (max)
·  Power dissipation
    - Active mode: 440 mW/385 mW (max)
    - Standby mode 11 mW (max)
·  Fast page mode capability
·  Refresh cycles
    - 4096 refresh cycles : 64 ms
·  3 variations of refresh
    - RAS-only refresh
    - CAS-before-RAS refresh
    - Hidden refresh
·  Test function
    - 16-bit parallel test mode


Pinout

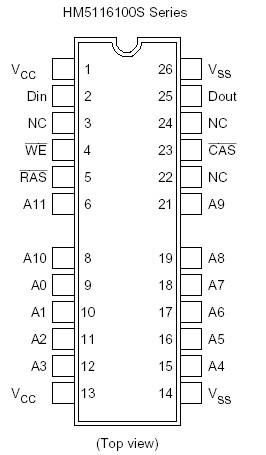

Connection Diagram


Specifications

Parameter Symbol Value Unit
Terminal voltage on any pin relative to VSS VT 1.0 to +7.0 V
Power supply voltage relative to VSS VCC 1.0 to +7.0 V
Short circuit output current Iout 50 mA
Power dissipation PT 1.0 W
Operating temperature Topr 0 to +70
Storage temperature Tstg 55 to +125



Description

The Hitachi HM5116100 is a CMOS dynamic RAM organized 16,777,216-word ' 1-bit. It employs the most advanced 0.5mm CMOS technology for high performance and low power. The HM5116100 offers Fast Page Mode as a high speed access mode. It is packaged in 26-pin plastic SOJ.
