HM5112805F-6

Features: ` Single 3.3 V supply: 3.3 V ± 0.3 V` Access time: 60 ns (max)` Power dissipation-Active: 720 mW (max) (HM5112805F) 792 mW (max) (HM5113805F)- Standby : 3.6 mW (max) (CMOS interface) : 1.8 mW (max) (CMOS interface) (L-version)` EDO page mode capability` Refresh cycles - RAS-only refresh ...

product image

HM5112805F-6 Picture
See larger image
SeekIC No. : 004363306 Detail

HM5112805F-6: Features: ` Single 3.3 V supply: 3.3 V ± 0.3 V` Access time: 60 ns (max)` Power dissipation-Active: 720 mW (max) (HM5112805F) 792 mW (max) (HM5113805F)- Standby : 3.6 mW (max) (CMOS interface) : 1.8...

HM5112805F-6 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HM5112805F-6
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  Single 3.3 V supply: 3.3 V ± 0.3 V
`  Access time: 60 ns (max)
`  Power dissipation
-Active: 720 mW (max) (HM5112805F) 792 mW (max) (HM5113805F)
- Standby : 3.6 mW (max) (CMOS interface) : 1.8 mW (max) (CMOS interface) (L-version)
`  EDO page mode capability
`  Refresh cycles - RAS-only refresh 8192 cycles/64 ms (HM5112805F) 4096 cycles/64 ms (HM5113805F)
- CBR/Hidden refresh
4096 cycles/64 ms (HM5112805F, HM5113805F)

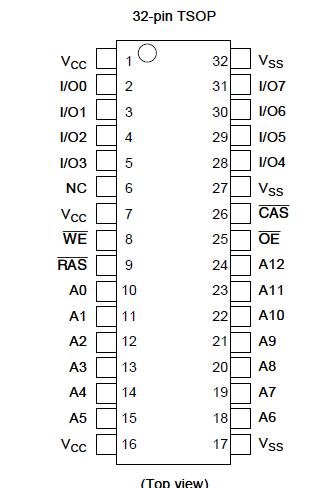

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Terminal voltage on any pin relative to VSS
VT
0.5 to VCC + 0.5 (£ 4.6 V (max))
V
Power supply voltage relative to VSS
VCC
0.5 to +4.6
V
Short circuit output current
Iout
50
mA
Power dissipation
PT
1.0
W
Storage temperature
Tstg
55 to +125
°C



Description

The Hitachi HM5112805F, HM5113805F are 128M-bit dynamic RAMs organized as 16,777,216-word ´ 8-bit. They have realized high performance and low power by employing CMOS process technology. HM5112805F, HM5113805F offer Extended Data Out (EDO) Page Mode as a high speed access mode. HM5112805F, HM5113805F are packaged in 32-pin plastic TSOPII.
