HLMP-1790-A00A2, US $ .22-.6 , Avago Technologies, HLMP-1790-A00A2 DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 0053783 Detail

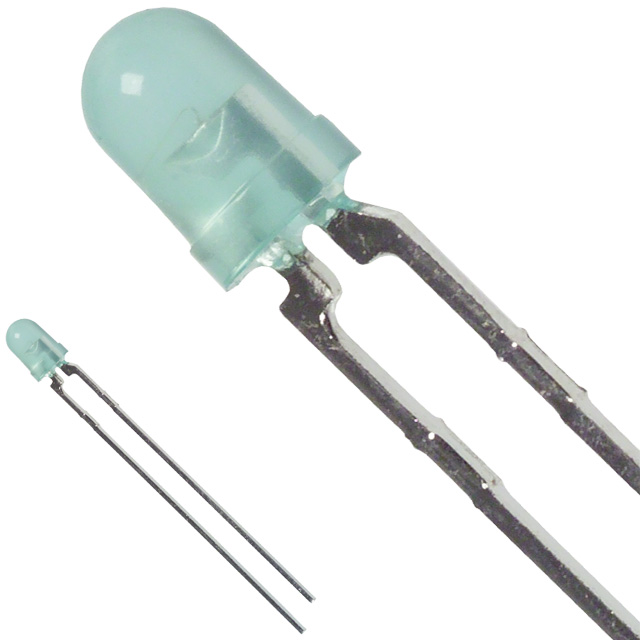

HLMP-1790-A00A2: Standard LED - Through Hole Green Diffused 565nm 2.3mcd

HLMP-1790-A00A2 Data Sheet

US $ .22~.6 / Piece | Get Latest Price

Part Number:: HLMP-1790-A00A2
Mfg:: Avago Technologies
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250

Unit Price
$.6
$.33
$.24
$.22

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

HLMP-0103 evaluate
US $.06 - .18 / Piece

LED Mounting Hardware Lamp 5mm Clip and Ri ngs
HLMP0300 evaluate
US $.07 - .17 / Piece

Standard LED - Through Hole Hi Eff Red Solid State Rectang
HLMP-0300 evaluate
Features: • Rectangular Light Emitting Surface• Flat High Sterance Emitting Surface...

Product Details

Quick Details

Illumination Color :	Green	Luminous Intensity :	2.3 mcd
Wavelength/Color Temperature :	569 nm	Viewing Angle :	50 deg
Lens Color/Style :	Tinted, Diffused	Forward Current :	2 mA
LED Size :	T-1	Packaging :	Bulk

Description

Forward Voltage :
Illumination Color : Green
LED Size : T-1
Packaging : Bulk
Lens Color/Style : Tinted, Diffused
Forward Current : 2 mA
Wavelength/Color Temperature : 569 nm
Luminous Intensity : 2.3 mcd
Viewing Angle : 50 deg

Specifications

Viewing angle designed for wide field of view applications
Superior performance for outdoor environments

Description

This tinted diffused LED lamp is designed and optimized specifically for low current operation. Luminous intensity and forward voltage of HLMP-1790-A00A2 are tested at 2 mA to assure consistant brightness at TTL output current levels.

Parameters:

Technical/Catalog Information	HLMP-1790-A00A2
Vendor	Avago Technologies US Inc.
Category	Optoelectronics
Color	Green
Lens Style/Size	Round, 3mm, T-1
Millicandela Rating	2.3mcd
Voltage - Forward (Vf) Typ	1.9V
Wavelength - Dominant	569nm
Wavelength - Peak	565nm
Current - Test	2mA
Viewing Angle	50°, 35°
Lens Type	Diffused, Red Tinted
Luminous Flux	1 mlm, 1 mlm
Package / Case	Radial
Mounting Type	Through Hole, Right Angle
Packaging	Bulk
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	HLMP 1790 A00A2 HLMP1790A00A2 516 1759 ND 5161759ND 516-1759
