HLMP-1301-E00A1, US $ .18-.48 , Avago Technologies, HLMP-1301-E00A1 DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 0053438 Detail

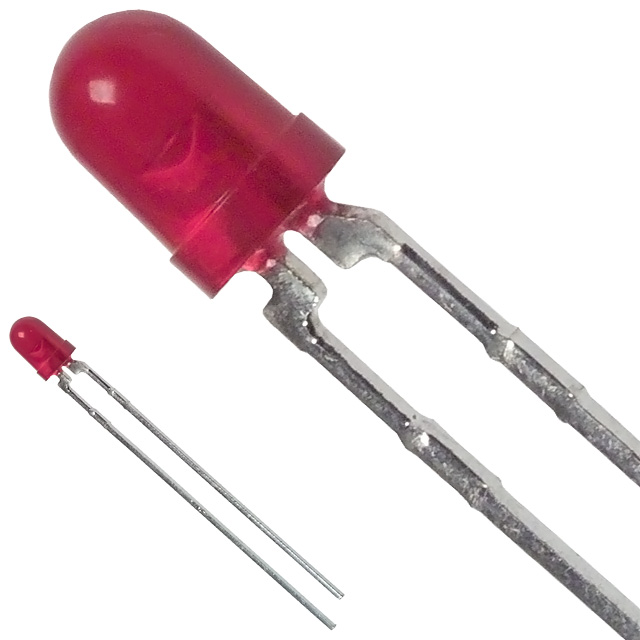

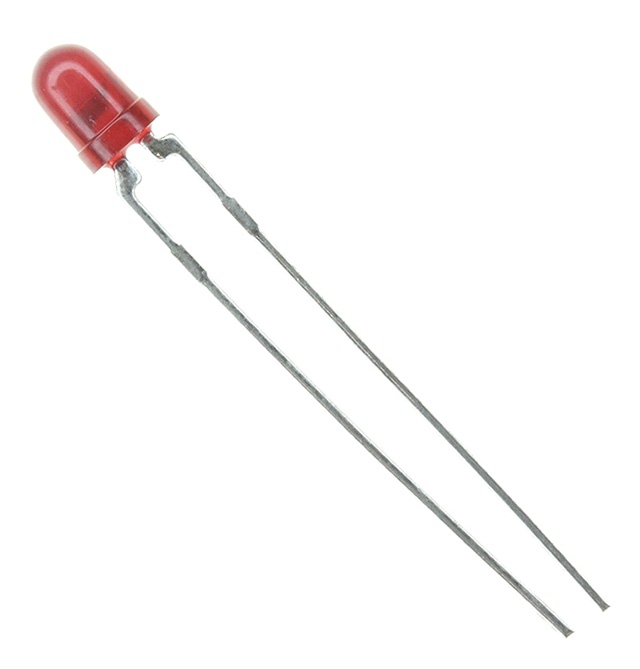

HLMP-1301-E00A1: Standard LED - Through Hole Red Diffused 635nm 3.4mcd

HLMP-1301-E00A1 Data Sheet

US $ .18~.48 / Piece | Get Latest Price

Part Number:: HLMP-1301-E00A1
Mfg:: Avago Technologies
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250

Unit Price
$.48
$.26
$.19
$.18

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

HLMP-0103 evaluate
US $.06 - .18 / Piece

LED Mounting Hardware Lamp 5mm Clip and Ri ngs
HLMP0300 evaluate
US $.07 - .17 / Piece

Standard LED - Through Hole Hi Eff Red Solid State Rectang
HLMP-0300 evaluate
Features: • Rectangular Light Emitting Surface• Flat High Sterance Emitting Surface...

Product Details

Quick Details

Illumination Color :	Red	Luminous Intensity :	3.4 mcd
Wavelength/Color Temperature :	635 nm	Viewing Angle :	60 deg
Lens Color/Style :	Diffused	Forward Current :	10 mA
Forward Voltage :	1.9 V	LED Size :	T-1
Packaging :	Bulk

Description

Illumination Color : Red
LED Size : T-1
Packaging : Bulk
Viewing Angle : 60 deg
Forward Voltage : 1.9 V
Forward Current : 10 mA
Luminous Intensity : 3.4 mcd
Wavelength/Color Temperature : 635 nm
Lens Color/Style : Diffused

Specifications

Viewing angle designed for wide field of view applications
Superior performance for outdoor environments

Description

This HLMP-1301-E00A1 T-1 lamp is widely used in general purpose indicator applications. Diffusants, tints, and optical design are balanced to yield superior light output and wide viewing angle. Several intensity choices are available for increased design flexibility.

Parameters:

Technical/Catalog Information	HLMP-1301-E00A1
Vendor	Avago Technologies US Inc.
Category	Optoelectronics
Color	Red
Lens Style/Size	Round, 3mm, T-1
Millicandela Rating	3.4mcd
Voltage - Forward (Vf) Typ	1.9V
Wavelength - Dominant	626nm
Wavelength - Peak	635nm
Current - Test	10mA
Viewing Angle	60°
Lens Type	Diffused, Red Tinted
Luminous Flux	3 mlm
Package / Case	Radial
Mounting Type	Through Hole
Packaging	Bulk
Lead Free Status	Lead Not Applicable
RoHS Status	RoHS Not Applicable
Other Names	HLMP 1301 E00A1 HLMP1301E00A1 516 1751 ND 5161751ND 516-1751
