HIP5500

Features:

• 500V Maximum Rating
• 2A Peak Gate Drive
• Ability to Interface and Drive N-Channel Power Devices With Complimentary Outputs For Buffered FETs
• Fault Output, Overcurrent Detection and Undervoltage Holdoff
• Over 600kHz Sawtooth Oscillator Frequency
• Adjustable Deadtime Control
• Soft-Start Capability
• Low Current Standby State
• Sleep Mode Reduces Bias Current When Not Enabled


Application

• Switching and Distributed Power Supplies
• Electronic Lighting Supplies

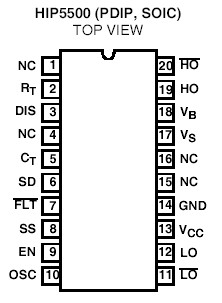

Pinout




Specifications

Offset Supply Voltage, V_S . . . . . . . . . . . . . . . . . . . . . -V_BS to +500V
Floating Supply Voltage (V_B to V_S) . . . . . . . . . . . .. . . -0.3V to +18V
High Side Channel Output Voltage, V_HO, V_NHO .. .. V_S-0.5 to V_B+0.5
Fixed Supply Voltage, V_CC . . . . . . . . . . . . . . . . . . . . . -0.5V to +18V
Low Side Channel Output Voltage . . . . . . . . . . . -0.5V to V_CC +0.5V
All Other Pin Voltages
(SD, RT, CT, DIS, SS, EN and F_LT) . . . . . . . . . .. .. -0.5V to V_CC +0.5V
Storage Temperature Range . . . . . . . . . . . . ..  . . . . -40 to +150
Junction Temperature. . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . +125
Lead Temperature (Soldering 10s). . . . . . . . . . . . . . . . . . . . . +300
(SOIC - Lead Tips Only)
Offset Supply Maximum dv/dt, dVS/dt . . . . . . . . .. . . . . . . . . . 50V/ns
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . Class 1


Description

The HIP5500, a high voltage integrated circuit (HVIC) halfbridge gate driver for standard power MOSFETs, IGBTs, and the new Intersil Buffered MOSFET (RFV10N50BE), can be employed in a wide variety of switching regulator circuits. The HIP5500 combines the functionality and flexibility of a PWM IC with the convenience of a high voltage half-bridge driver optimized for power supply inverters. It can be used either open-loop or in closed-loop fashion using the SS input for controlling the output waveform duty-cycle.

The HIP5500 incorporates a precision oscillator, adjustable using an external resistor and capacitor. The resistor sets the capacitor charging current and the capacitor sets the integration time of a triangle wave. Another resistor connected to the DIS pin adjusts the dead-time and can be tailored to the application. The oscillator switches at twice the output waveform fundamental frequency. The result is an output waveform whose positive and negative half-cycles are near perfect balance (volt-second equalization).

Short-Detect (SD) and Soft-Start (SS) inputsof HIP5500  provide alternative means for limiting and regulating respectively the half-bridge output voltage. A capacitor on the SS input will begin charging up once the EN input is made high and causes the duty cycle of each half-cycle to "ramp" the duty cycle of the output waveform. The SD input can sense a signal proportional to current, providing a means of shortening the conduction periods below that imposed by the SS input.

Other circuits within the HIP5500 "match" upper and lower turn-on and turn-off propagation times in order to minimize flux imbalances when driving output transformer loads.
