HIP5010

Features:

• Complementary Drive, Half-Bridge Power NMOS
• Use With Low-Cost Single-Output PWM Controllers
• Improve Efficiency Over Conventional Buck Converter with Schottky Clamp
• Minimum Deadtime Provided by Adaptive Shoot-Through Protection Eliminates External Schottky
• Grounded Case for Low EMI and Simple Heatsinking
• Low Operating Current
• Frequency Exceeding 1MHz
• Dual Polarity Input Options
• All Pins Surge Protected


Application

• 5V to £3.3V Synchronous Buck Converters
• Pentium and P6 Power Supplies
• PowerPC™ Power Supplies
• Bus Terminations (BTL and GTL)
• Drive 5V Motors Directly from Microprocessor

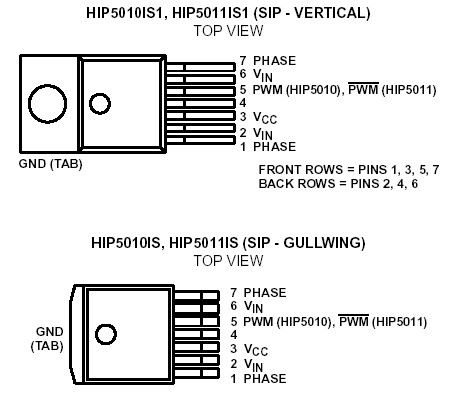

Pinout




Specifications

Supply Voltage, V_CC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +16V
Input Voltage V_IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +7V
IPHASE, I_VIN, I_GND (T_J = 25oC) . . . . . . . . . . . 17A (Repetitive Peak)
IPHASE, I_VIN, I_GND (T_J = 150oC) . . . . . . . . . . 15A (Repetitive Peak)
PWM Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. -4V to +16V
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . .  ..Class 3 (4kV)
Lead Temperature (Soldering 10s) (Lead Tips Only). . . . . . . . .300
Storage Temperature Range . . . . . . . . . . . . . . . .  . .. .-65 to 150
Junction Temperature Range. . . . . . . . . . . . . . . . . .  . -40 to 150


Description

Designed with the P6 and Pentium® in mind, the Intersil SynchroFET™ HIP5010   family provides a new approach for implementing a synchronous rectified buck switching regulator.

The HIP5010  replaces two power DMOSs, a Schottky diode, two gate drivers and synchronous control circuitry. The complementary drive circuit turns the upper FET on and the lower FET off when the input from the PWM is high. When the input from the PWM goes low the upper FET turns off and the lower FET turns on. The HIP5010 has a PWM pin that inverts the relationship from the input to PHASE. This architecture allows the designer to utilize a low cost single-ended PWM controller in either a current or voltage mode configuration. The SynchroFET operates in continuous conduction mode reducing EMI constraints and enabling high bandwidth operation.

Several features of HIP5010  ensure easy start-up. First, the supply currents stay below specification as the supply voltages ramp up; no unexpected surges occur that might perturb a soft-start or deplete a charge-pump. Second, any power-up sequence of the VCC, VIN, or PWM pins can be used without causing large currents. Third, the chip operates when VCC is greater than 2V so VCC can be created from a charge pump powered from VIN.
