Product Details

Description



Features:

• HOT SWAP Dual Power Distribution Control for +5V and +12V or +5V and +3.3V
• Provides Fault Isolation
• Charge Pump Allows the Use of N-Channel MOSFETs
• Redundant Power On Controls
• Power Good and Over Current Latch Indicators
• Adjustable Turn-On Ramp
• Protection During Turn-On





Application

• Power Distribution Control
• Hot Plug™ Components

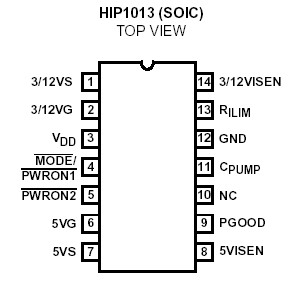

Pinout

  Connection Diagram




Specifications

VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . -0.3V to +13.2V
3/12VG, CPUMP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to 18.5V
3/12VISEN, 3/12VS . . . . . . . . . . . . . . . . . . . . . . . -5V to VDD + 0.3V
5VISEN, 5VS . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . -5V to 7.5V
PGOOD, RILIM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.3V to 7.5V
MODE/PWRON1, PWRON2, 5VG . . . . . . . . ... .-0.3V to VDD + 0.3V
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2kV (Class 2)





Description

The HIP1013 is a low cost HOT SWAP dual supply power distribution controller. Two external N-Channel MOSFETs are driven to distribute power while providing load fault isolation. At turn-on, the gate of each external N-Channel MOSFET is charged with a 10mA current source. Capacitors on each gate (see the Typical Application Diagram), create a programmable ramp (soft turn-on) to control inrush currents. A built in charge pump supplies the gate drive for the 12V supply N-Channel MOSFET switch.

Over current protection is facilitated by two external current sense resistors. When the current through either resistor exceeds the user programmed value the N-Channel MOSFETs are latched off by the HIP1013. The controller is reset by a rising edge on either PWRON pin.
Choosing the voltage selection mode the HIP1013 controls either +12V/5V or +3.3V/+5V supplies.

Although pin compatible with the HIP1012 device, the HIP1013 does not offer current regulation during an OC event.
