HIP1011D

Features:

• Independent Power Control of 2 PCI Slots
• Turn-Off Delay Time Adjustability
• Internal MOSFET Switches for +12V and -12V Outputs
• µP Interface for On/Off Control and Fault Reporting
• Adjustable Overcurrent Protection for All Eight Supplies
• Provides Fault Isolation
• Adjustable Turn-On Slew Rate
• Minimum Parts Count Solution
• No Charge Pump
• 100ns Response Time to Over Current




Application

• PCI Hot-Plug

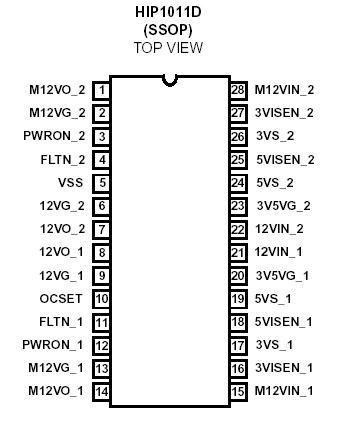

Pinout






Specifications

12VIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to +14.0V
12VO, 12VG, 3V5VG . . . . . . . . . . . . . . . . . . . .-0.5V to 12VIN +0.5V
M12VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -14.0V to +0.5V
M12VO, M12VG. . . . . . . . . . . . . . . . . . . . . . VM12VIN-0.5V to +0.5V
3VISEN, 5VISEN . . . . . . . . . . -0.5V to the Lesser of 12VIN or +7.0V
Voltage, Any Other Pin. . . . . . . . . . . . . . . . . . . . . . . -0.5V to +7.0V
12VO Output Current . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . .3A
M12VO Output Current . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . 0.8A
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .2KeV (HBM)




Description

The HIP1011D is the first IC available for independent control of two PCI Hot Plug slots. The HIP1011D has all the features and functionality of two single PCI Hot Plug slot controllers such as the HIP1011A but in the same foot print area.

The HIP1011D is designed to be physically placed in close proximity to two adjacent PCI slots servicing each independently but reducing layout complexity and placement costs in assembly. HIP1011D creates two independent power control solutions with discrete power MOSFETs and a few passive components. The four supplies +5V, +3.3V, +12V, and -12V for each slot are independently controlled. There are four integrated current sensing switches for the +12V and -12V and for the +5V and +3.3V supplies overcurrent protection is provided by sensing the voltage across external currentsense resistors. In addition, on-chip references are used to monitor the +5V, +3.3V and +12V outputs for undervoltage conditions. The two PWRON inputs control the state of the switches, one each for slot A and slot B outputs. During an overcurrent condition on any output, or an undervoltage condition on the +5V, +3.3V or +12V outputs, a LOW (0V) is asserted on the associated FLTN output and all associated switches are latched-off. The outputs servicing the adjacent slot are unaffected.

The time to FLTN signal going LOW and MOSFET latch off is user determined by a single capacitor from each FLTN pin to ground. This added feature enables the HIP1011D to ignore system noise transients. The FLTN latch is cleared when the PWRON input is toggled low again. During initial power-up of the main VCC supply (+12V), the PWRON input is inhibited from turning on the switches, and the latch is held in the Reset state until the VCC input is greater than 10V. User programmability of the overcurrent threshold and turnon slew rate is provided. A resistor connected to the OCSET pin programs the overcurrent threshold for both slots.Capacitors connected to the gate pins set the turn-on rate.
