HI5810

Features:

• Conversion Time . . . . . . . . . . . . . . . . . . . . . . . . . . . 10µs
• Throughput Rate . . . . . . . . . . . . . . . . . . . . . . .100 KSPS
• Built-In Track and Hold
• Single Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . .+5V
• Maximum Power Consumption. . . . . . . . . . . . . . .40mW
• Internal or External Clock
• 1MHz Input Bandwidth . . . . . . . . . . . . . . . . . . . . . -3dB


Application

• Remote Low Power Data Acquisition Systems
• Digital Audio
• DSP Modems
• General Purpose DSP Front End
• µP Controlled Measurement Systems
• Process Controls
• Industrial Controls

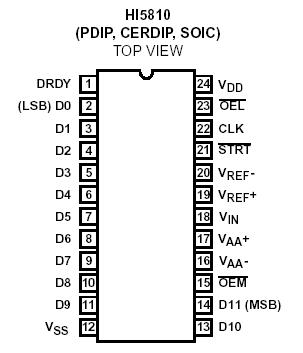

Pinout




Specifications

Supply Voltage
V_DD to V_SS . . . . . . . . . . . . . . . . . . . . (V_SS -0.5V) < V_DD < +6.5V
V_AA+ to V_AA-. . . . . . . . . . . . . . . . . . . (V_SS -0.5V) to (V_SS +6.5V)
V_AA+ to V_DD . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . ±0.3V
Analog and Reference Inputs
VIN, VREF+, VREF- . . . . . . . . . (V_SS -0.3V) < V_INA < (V_DD +0.3V)
Digital I/O Pins . . . . . . .  . . . . (V_SS -0.3V) < VI/O < (V_DD +0.3V)


Description

The HI5810 is a fast, low power, 12-bit, successiveapproximation, analog-to-digital converter. It can operate from a single 3V to 6V supply and typically draws just 1.9mA when operating at 5V. The HI5810 features a built-in track and hold.

The conversion time of HI5810  is as low as 10µs with a 5V supply.The twelve data outputs feature full high speed CMOS threestate bus driver capability, and are latched and held through a full conversion cycle. The output is user selectable: [i.e., 12-bit, 8-bit (MSBs), and/or 4-bit (LSBs)]. A data ready flag, and conversion-start input complete the digital interface.An internal clock is provided and is available as an output. The clock may also be over-driven by an external source.
