HI5801

Features:

• 200ns Conversion Time
• 12-Bit No Missing Codes Over Temperature
• 0.5 LSB DNL/1.0 LSB INL
• High Input Bandwidth
• Precision Voltage Reference
• Š±Š2.5V Input Signal Range
• Zero Latency/No Pipeline Delay


Application

• High Speed Data Acquisition Systems
• Medical Imaging
• Radar Signal Analysis
• Document and Film Scanners
• Vibration/Waveform Spectrum Analysis
• Digital Servo Control

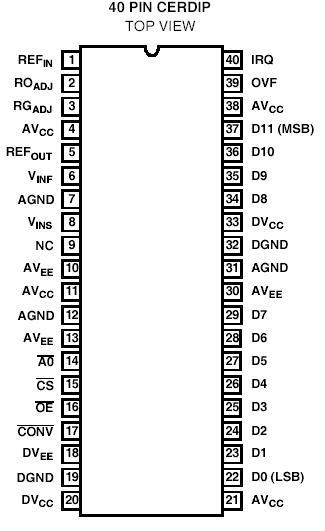

Pinout




Description

The HI5801 is a monolithic, 12-bit, Analog-to-Digital Converter fabricated in the HBC10 BiCMOS process. It is a complete subsystem containing voltage reference, two-step subranging A/D, error correction, control logic, and timing generator. The HI5801 is designed for high speed applications where wide bandwidth, accuracy and low distortion are essential.

The HI5801 is available in Commercial and Industrial temperature ranges and is offered in a 40 pin ceramic DIP and a 44 pin PLCC package.
