Product Details

Description



Features:

• Sampling Rate . . . . . . . . . . . . . . . . . . . . . . . . . . .20MSPS
• Low Power at 20MSPS. . . . . . . . . . . . . . . . . . . . . . .40mW
• Power Down Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 3mW
• Wide Full Power Input Bandwidth. . . . . . . . . . . . . 100MHz
• On-Chip Sample and Hold Amplifiers
• Single Supply Voltage Operation . . . . . . . . . .+2.7V - 3.3V


Application

• Wireless Local Loop
• PSK and QAM I&Q Demodulators
• Medical Imaging
• Wireless Communications Systems
• Battery Powered Instruments

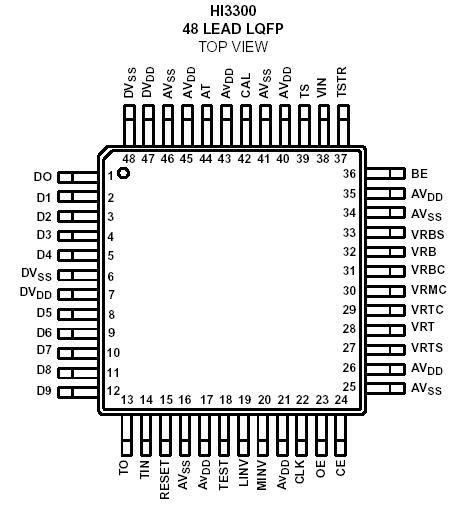

Pinout

Connection Diagram


Specifications

Supply Voltage (AVDD) . . . . . . . . . . . . . . . . . . . AVSS -0.5V to 4.5V
(DVDD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DVSS -0.5V to 4.5V
Reference Voltage (VRT, VRB) . . . . . . . . AVDD +0.5V to AVSS -0.5V
Input Voltage (Analog) (VIN) . . . . . . . . . . . . . AVDD +0.5V to -0.5V
Input Voltage (Digital) (VIH, VIL) . . . . .  AVDD +0.5V to AVSS -0.5V
Output Voltage (Digital) (VOH, VOL). .  . DVDD +0.5V to DVSS -0.5V


Description

The HI3300 is a monolithic, 10-bit analog-to-digital converter fabricated in an advanced CMOS process. It is designed for high speed applications where integration, bandwidth and accuracy are essential. The HI3300 features a 2-step parallel architecture to allow the system designer to realize an increased level of system integration resulting in decreased cost and power dissipation.

The HI3300 has excellent dynamic performance while consuming less than 40mW power at 20MSPS. The A/D only requires a single +3.0V power supply.
