HI2309

Features:

• Resolution . . . . . . . . . . . . . . . . . . . . . . . . . .Triple 10-Bit
• Maximum Conversion Speed . . . . . . . . . . . . . . . 50MHz
• RGB 3-Channel Input/Output
• Differential Linearity Error . . . . . . . . . . . . . . . ±0.5 LSB
• Low Power Consumption . . . . . . . . . . . . . . . . . . 200mW (200Ω Load for 2VP-P Output)
• Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . +5V Single
• Low Glitch
• Direct Replacement for Sony CXD2309


Application

• Digital TV
• Graphics Display
• High Resolution Color Graphics
• Video Reconstruction
• Instrumentation
• Image Processing
• I/Q Modulation

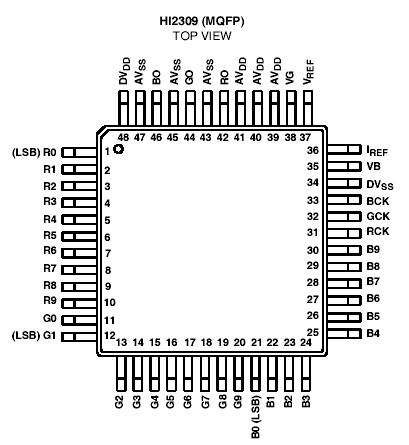

Pinout




Specifications

Supply Voltage (VDD). . . . . . . . . . . . . . . . . . . . . . . . . . . .   . . . . . 7V
Input Voltage (VIN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . VDD to VSS
Output Current (IOUT) . . . . . . . . . . . . . . . . . . . . . . .  .0mA to 15mA
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . -55 150


Description

The HI2309 is a triple 10-bit, high-speed, CMOS D/A converter designed for video band use. It has three separate, 10-bit, pixel inputs, one each for red, green, and blue video data. A single 5.0V power supply and pixel clock input is all that is required to make the device operational. A bias voltage generator is internal. Each channel clock input can be controlled individually, or connected together as one. The HI2309 also has BLANK video control signal.
