HI2300

Features: • Resolution . . . . . . . . . . . . . . . . . . . . 8-Bit ±1/2 LSB (DL)• Maximum Sampling Frequency . . . . . . . . . . . 18 MSPS• Low Power Consumption at 18 MSPS (Typ)(Reference Current Excluded) . . . . . . . . . . . . . . .18mW• Synchronizing Clamp Function&#...

product image

HI2300 Picture
See larger image
SeekIC No. : 004362320 Detail

HI2300: Features: • Resolution . . . . . . . . . . . . . . . . . . . . 8-Bit ±1/2 LSB (DL)• Maximum Sampling Frequency . . . . . . . . . . . 18 MSPS• Low Power Consumption at 18 MSPS (Typ)...

HI2300 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HI2300
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Resolution . . . . . . . . . . . . . . . . . . . . 8-Bit ±1/2 LSB (DL)
• Maximum Sampling Frequency . . . . . . . . . . . 18 MSPS
• Low Power Consumption at 18 MSPS (Typ)
(Reference Current Excluded) . . . . . . . . . . . . . . .18mW
• Synchronizing Clamp Function
• Clamp ON/OFF Function
• Reference Voltage Self-Bias Circuit
• Input CMOS Compatible
• Three-State TTL Compatible Output
• Power Supply . . . . . . . . . . . . . . . . . . . . . . . . 3.3V Single
• Low Input Capacitance . . . . . . . . . . . . . . . . . . . . . . .8pF
• Reference Impedance . . . . . . . . . . . . . . . . . . 330Ω (Typ)
• Direct Replacement for Sony CXD2300


Application

• Portable Equipment
• Hand-Held Instruments


Pinout

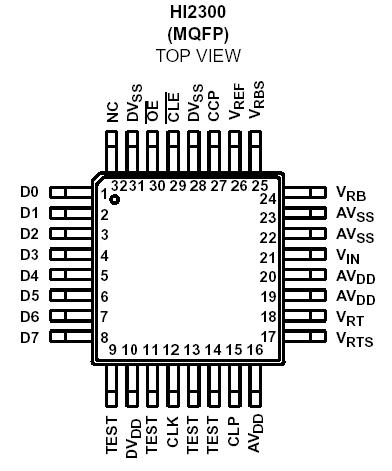

Connection Diagram


Specifications

Supply Voltage (VDD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7V
Reference Voltage (VRT, VRB) . . . . . . . . VDD +0.5V to VSS - 0.5V
Input Voltage, Analog (VIN) . . . . . . . . . .VDD +0.5V to VSS - 0.5V
Input Voltage, Digital (VIH, VIL) . . . . . . .VDD +0.5V to VSS - 0.5V
Output Voltage, Digital (VOH, VOL) . . . . .VDD +0.5V to VSS - 0.5V


Description

The HI2300 is an 8-bit, CMOS A/D converter for video with synchronizing clamp function and can operate on 3.3V power supply. The adoption of 2 step-parallel method achieves ultra-low power consumption and a maximum conversion speed of 18 MSPS.
