HI2302

Features: • Resolution . . . . . . . . . . . . . . . . . . 8-Bit ±0.5 LSB (DNL)• Maximum Sampling Frequency . . . . . . . . . . . 50 MSPS• Low Power Consumption . . . . . . . . . . . . . . . . . .125mW (Reference Current Excluded)• Built-In Input Clamp Function (DC Restore)...

product image

HI2302 Picture
See larger image
SeekIC No. : 004362322 Detail

HI2302: Features: • Resolution . . . . . . . . . . . . . . . . . . 8-Bit ±0.5 LSB (DNL)• Maximum Sampling Frequency . . . . . . . . . . . 50 MSPS• Low Power Consumption . . . . . . . . . ....

HI2302 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HI2302
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Resolution . . . . . . . . . . . . . . . . . . 8-Bit ±0.5 LSB (DNL)
• Maximum Sampling Frequency . . . . . . . . . . . 50 MSPS
• Low Power Consumption . . . . . . . . . . . . . . . . . .125mW (Reference Current Excluded)
• Built-In Input Clamp Function (DC Restore)
• Clamp ON/OFF Function
• Internal Voltage Reference
• Input CMOS/TTL Compatible
• Three-State TTL Compatible Output
• Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . +5V Single or +5V/3.3V Dual
• Direct Replacement for Sony CXD2302Q


Application

• Video Digitizing
• Wireless Receivers
• LCD Projectors/Panels
• Cable Modems
• RGB Graphics Processing
• Camcorders
• Instrumentation


Pinout

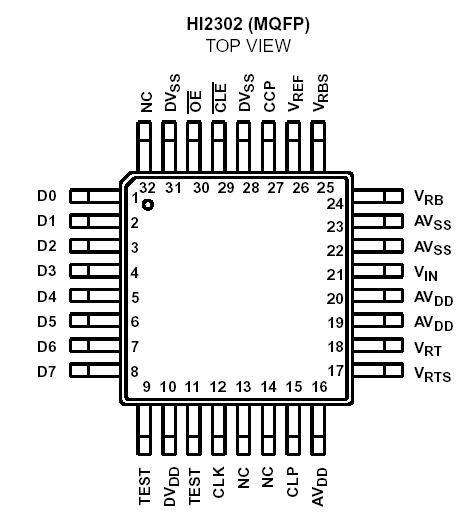

Connection Diagram


Specifications

Supply Voltage (VDD) . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . 7V
Reference Voltage (VRT, VRB) . . . . . . . . . . VDD +0.5 to VSS -0.5V
Input Voltage (Analog) (VIN) . . . . . . . . . .. VDD +0.5 to VSS -0.5V
Input Voltage (Digital) (VI). . . . . . . . . . . .. VDD +0.5 to VSS -0.5V
Output Voltage (Digital) (VO) . . . . . . . . . .. VDD +0.5 to VSS -0.5V


Description

The HI2302 is an 8-bit CMOS A/D Converter for video with synchronizing clamp function. The adoption of two-step parallel method achieves low power consumption and a maximum conversion rate of 50 MSPS. For pin compatible lower sample rate converters refer to HI1179 (35 MSPS) or HI1176 (20 MSPS) data sheets.
