HI2304

Features:

• Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . .Triple 8-Bit
• Maximum Conversion Speed . . . . . . . . . . . . . . . 20MHz
• RGB 3-Channel Input/Output
• Differential Linearity Error . . . . . . . . . . . . . . . ±0.5 LSB
• Low Power Consumption . . . . . . . . . . . . . . . . . . .50mW (330W Load for 1.2VP-P Output)
• Single Power Supply . . . . . . . . . . . . . . . . . . . . . . . +3.3V
• Low Glitch Noise
• Direct Replacement for Sony CXD2304


Application

• Digital TV
• Graphics Display
• High Resolution Color Graphics
• Video Reconstruction
• Instrumentation
• Image Processing
• I/Q Modulation

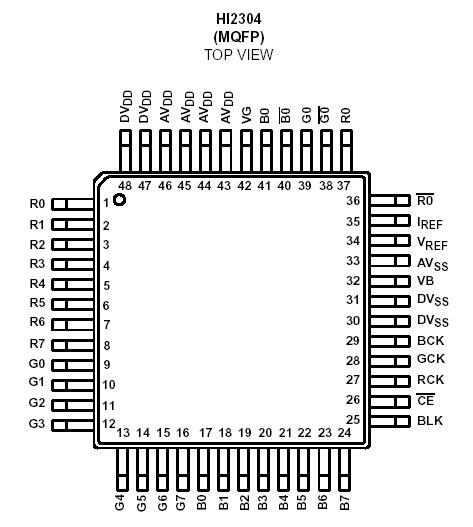

Pinout




Specifications

Supply Voltage (VDD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7V
Input Voltage (VIN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VDD to VSS
Output Current (IOUT). . . . . . . . . . . . . . . . . . . . . . . . . .0mA to 15mA
(Every Each Channel)


Description

The HI2304 is a triple 8-bit, high-speed, CMOS D/A converter designed for video band use. It has three separate, 8-bit, pixel inputs, one each for red, green, and blue video data. A single 3.3V power supply and pixel clock input can be controlled individually, or connected together as one. The HI2304 also has BLANK video control signal.For faster speed and 5.0V operation, refer to the HI1178.
