HI-6010

Features: ·ARINC 429 protocol controller with interface to an 8 bit bus·Automatic label recognition option·8 bit or 32 bit buffering option·Self test and parity options·CMOS / TTL logic pins·Plastic and ceramic package options - surface mount or DIP·Military processing availableApplication·Avionic...

product image

HI-6010 Picture
See larger image
SeekIC No. : 004362466 Detail

HI-6010: Features: ·ARINC 429 protocol controller with interface to an 8 bit bus·Automatic label recognition option·8 bit or 32 bit buffering option·Self test and parity options·CMOS / TTL logic pins·Plastic...

HI-6010 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HI-6010
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·ARINC 429 protocol controller with interface to an 8 bit bus
·Automatic label recognition option
·8 bit or 32 bit buffering option
·Self test and parity options
·CMOS / TTL logic pins
·Plastic and ceramic package options - surface mount or DIP
·Military processing available




Application

·Avionics Data Communication
·Serial to Parallel Conversion
·Parallel to Serial Conversion




Pinout

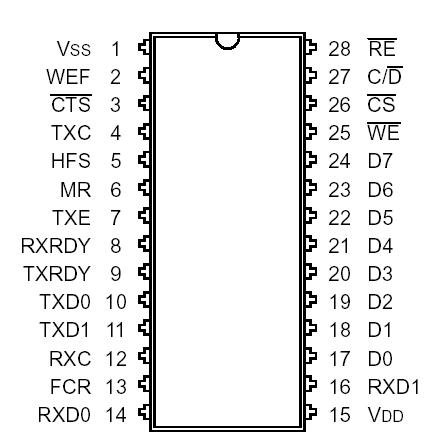

Connection Diagram




Specifications

Supply Voltage: VDD. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .-0.5V to +7.0V
Input Voltage Range VIN. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . ..0.5V to VDD+0.5V
Input Current IIN. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . ..........+10mA
Output Current IOUT . . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .+25mA
Power Dissipation PD. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .. . . . . .500mW
Operating Temperature Range: TA (Industrial) . . . . . .. . . . . .. . . . . -40°C to +85°C
Operating Temperature Range:TA (Hi temp & Military) . . . . . .. . . . -55°C to +125°C
Storage Temperature Range:TSTG. . . . . .. . . . . .. . . . . .. . . . . .. . ..-65°C to +150°C
Lead Temperature TLEAD. . . . . .. . . . . .. . . . . .. . . . . . . . . . .. . .300°C for 60 Seconds




Description

The HI-6010 is a CMOS integrated circuit designed to interface the avionics data bus standard ARINC 429 to an 8 bit port. It contains one receiver and one transmitter. They operate independently except for the self test option and the parity option. The receiver demands that the incoming data meet the standard protocol and the transmitter outputs a standard protocol stream.

The HI-6010 provides flexible options for interfacing to the user system. The controlling processor can operate both the receiver and transmitter either by using hard wired flags and gates at the pins or by using software reads and writes of the Status Register and Control Register or a combination thereof.

The HI-6010 is programmable to operate with single 8 bit bytes requiring
