HI-15530

Features:

·Mil-Std-1553 compatible
·Interfaces to HI-1567 Transceiver
·Small footprint 24-pin plastic SOIC package option
·Direct replacement for: Harris HD15530 GEC Plessey Semiconductors MAS15530 Aeroflex ACT15530
·1.25 Mbit/s Data Rate
·Manchester II Encode and Decode
·Sync identification and Lock-in
·Clock recovery




Application

·Mil-Std-1553 Interfaces
·Smart Munitions
·Stores management
·ARINC 708A Interfaces
·Sensor interfaces
·Instrumentation

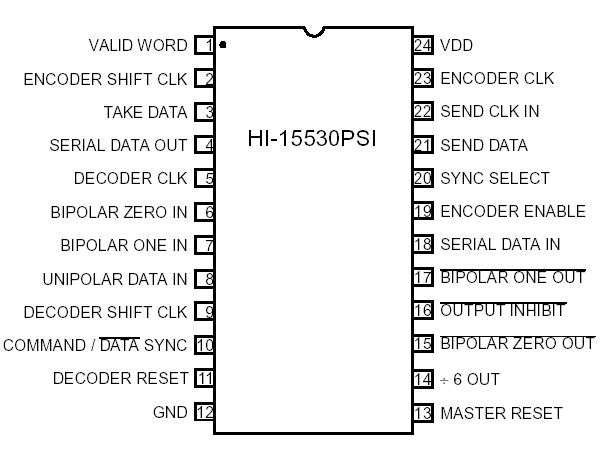

Pinout






Specifications

Supply Voltage V_DD........................-0.3V to +7V
Voltage at any pin................... ..-0.3V to V_cc +0.3V
Operating Temperature Range:
(Industrial)..........................-40°C to +85°C
(Military).......................... -55°C to +125°C
Power Dissipation at 25C
Plastic SOIC......................1.5 W, derate10mW/°C
Ceramic DIP...................... 1.0 W, derate 7mW/°C
DC Current Drain per pin........................-±10mA
Storage Temperature Range:................-65°C to +150°C




Description

The HI-15530 is a high performance CMOS integrated circuit designed to meet the requirements of Mil-Std-1553 and similar Manchester II encoded, time division multiplexed serial data protocols. The HI-15530 contains both an Encoder and Decoder, which operate independently.

The HI-15530 generates Mil-Std-1553 sync pulses, parity bits as well as the Manchester II encoding of the data bits. The decoder recognizes and identifies sync pulses, decodes databits, andperforms paritychecking.

The HI-15530 supports the 1Mbit/s data rate of Mil-Std-1553over thefull temperatureandvoltage range. For applications requiring small footprints and lowcost, the HI-15530 is available in a 24-pin plastic SOIC package.Ceramic DIP and LCC packages are also available to achieve the highest level of reliability and to provide drop-in replacement for obsoleteparts fromother manufacturers.
