Features:

• 25A, 1200V, TC = 25
• 1200V Switching SOA Capability
• Typical Fall Time. . . . . . . . . . . . . . . . 350ns at TJ = 150
• Short Circuit Rating
• Low Conduction Loss
• Temperature Compensating SABER™ Model
  Thermal Impedance SPICE Model
  www.intersil.com
• Related Literature
- TB334 "Guidelines for Soldering Surface Mount
  Components to PC Boards"


Pinout

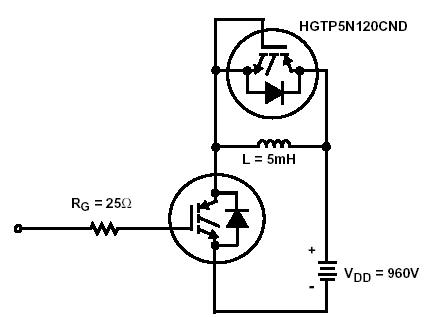

Connection Diagram


Specifications

Collector to Emitter Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .BVCES 1200 V
Collector Current Continuous At TC = 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IC25 25 A
Collector Current Continuous At TC = 110 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IC110 12 A
Collector Current Pulsed (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  ICM 40 A
Gate to Emitter Voltage Continuous. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .VGES ±20 V
Gate to Emitter Voltage Pulsed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .VGEM ±30 V
Switching Safe Operating Area at TJ = 150, Figure 2 . . . . . . . . . . . . . .  SSOA 30A at 1200V
Power Dissipation Total at TC = 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  PD 167 W
Power Dissipation Derating TC > 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.33 W/
Operating and Storage Junction Temperature Range . . . . . . . . . . . . . . TJ, TSTG -55 to 150
Maximum Lead Temperature for Soldering
Leads at 0.063in (1.6mm) from case for 10s . . . . . . . . . . . . . . . . . . . . . . . . . . . . .    TL 300
Package Body for 10s, see Tech Brief 334 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Tpkg 260
Short Circuit Withstand Time (Note 2) at VGE = 15V. . . . . . . . . . . . . . . . . . . . . . . . . . tSC 8 µs
Short Circuit Withstand Time (Note 2) at VGE = 12V. . . . . . . . . . . . . . . . . . . . . . . . ..tSC 15 µs


Description

The HGTG5N120CND, HGTP5N120CND and HGT1S5N120CNDS are Non-Punch Through (NPT) IGBT designs. They are new members of the MOS gated high voltage switching IGBT family. IGBTs combine the best features of MOSFETs and bipolar transistors. This HGTG5N120CND, HGTP5N120CND and HGT1S5N120CNDS  have the high input impedance of a MOSFET and the low on-state conduction loss of a bipolar transistor. The IGBT used is developmental type TA49309. The diode used in anti-parallel is developmental type TA49058.

The HGTG5N120CND, HGTP5N120CND and HGT1S5N120CNDS  IGBT is ideal for many high voltage switching applications operating at moderate frequencies where low conduction losses are essential, such as AC and DC motor controls, power supplies and drivers for solenoids, relays and contactors.Formerly Developmental Type TA49307.
