HGTG30N60B3

Collector- Emitter Voltage VCEO Max : 600 V
Maximum Operating Temperature : + 150 C
Packaging : Tube
Configuration : Single
Maximum Gate Emitter Voltage : +/- 20 V
Collector-Emitter Saturation Voltage : 1.45 V
Continuous Collector Current at 25 C : 60 A
Gate-Emitter Leakage Current : +/- 250 nA
Power Dissipation : 208 W
Package / Case : TO-247-3


Features:

• 60A, 600V, TC = 25oC
• 600V Switching SOA Capability
• Typical Fall Time. . . . . . . . . . . . . . . . . 90ns at TJ = 150oC
• Short Circuit Rating
• Low Conduction Loss




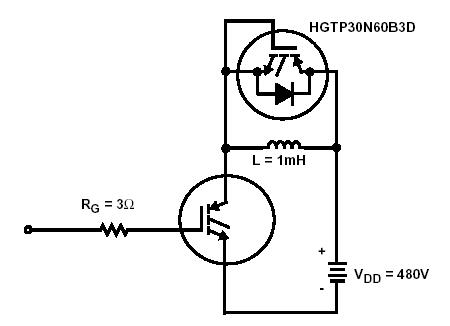

Pinout






Specifications

Collector to Emitter Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .BV_CES 600 V
Collector Current Continuous At T_C = 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I_C25 60 A
Collector Current Continuous At T_C = 110 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I_C110 30 A
Collector Current Pulsed (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I_CM 220 A
Gate to Emitter Voltage Continuous. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .V_GES ±20 V
Gate to Emitter Voltage Pulsed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V_GEM ±30 V
Switching Safe Operating Area at T_J = 150 (Figure 2) . . . . . . . . . . . . . . . SSOA 60A at 600V
Power Dissipation Total at T_C = 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P_D 208 W
Power Dissipation Derating T_C > 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.67 W/
Reverse Voltage Avalanche Energy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E_ARV 100 mJ
Operating and Storage Junction Temperature Range . . . . . . . . . . . . . . . T_J, T_STG -55 to 150
Maximum Lead Temperature for Soldering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T_L 260
Short Circuit Withstand Time (Note 2) at V_GE = 12V. . . . . . . . . . . . . . . . . . . . . . . . . . .t_SC 4 µs
Short Circuit Withstand Time (Note 2) at V_GE = 10V. . . . . . . . . . . . . . . . . . . . . . . . . .t_SC 10 µs

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
HGTG30N60B3	Full Production	RoHS Compliant	$6.18	TO-247	3	RAIL	TBD	Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &3 (3-Digit Date Code) &K Line 2: G30N60B3

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product HGTG30N60B3 is available. Click here for more information .

Description

The HGTG30N60B3 is a MOS gated high voltage switching device combining the best features of MOSFETs and bipolar transistors. This device has the high input impedance of a MOSFET and the low on-state conduction loss of a bipolar transistor. The much lower on-state voltage drop varies only moderately between 25 and 150.

The HGTG30N60B3 IGBT is ideal for many high voltage switching applications operating at moderate frequencies where low conduction losses are essential, such as: AC and DC motor controls, power supplies and drivers for solenoids, relays and contactors.Formerly Developmental Type TA49170.

Parameters:

Technical/Catalog Information	HGTG30N60B3
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Input Type	Standard
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	60A
Vce(on) (Max) @ Vge, Ic	1.9V @ 15V, 30A
Power - Max	208W
Mounting Type	Through Hole
Package / Case	TO-247
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	HGTG30N60B3 HGTG30N60B3
