IGBT Transistors 72A 1200V NPT Series N-Ch IGBT
HGTG27N120BN: IGBT Transistors 72A 1200V NPT Series N-Ch IGBT
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Features: • 35A, 1200V, TC = 25• 1200V Switching SOA Capability• Typical Fall Ti...
Configuration : | Single | Collector- Emitter Voltage VCEO Max : | 1200 V | ||
Collector-Emitter Saturation Voltage : | 2.45 V | Maximum Gate Emitter Voltage : | +/- 20 V | ||
Continuous Collector Current at 25 C : | 72 A | Gate-Emitter Leakage Current : | +/- 250 nA | ||
Power Dissipation : | 500 W | Maximum Operating Temperature : | + 150 C | ||
Package / Case : | TO-247-3 | Packaging : | Tube |

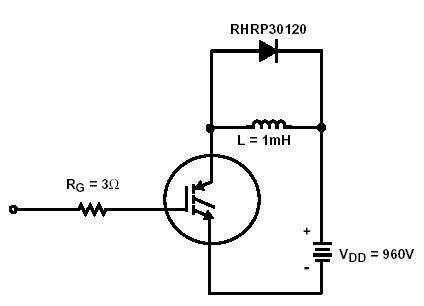

The HGTG27N120BN is a Non-Punch Through (NPT) IGBT design. This is a new member of the MOS gated high voltage switching IGBT family. IGBTs combine the best features of MOSFETs and bipolar transistors. This HGTG27N120BN has the high input impedance of a MOSFET and the low onstate conduction loss of a bipolar transistor.
The HGTG27N120BN IGBT is ideal for many high voltage switching applications operating at moderate frequencies where low conduction losses are essential, such as: AC and DC motor controls, power supplies and drivers for solenoids, relays and contactors. Formerly Developmental Type TA49280.
Technical/Catalog Information | HGTG27N120BN |
Vendor | Fairchild Semiconductor |
Category | Discrete Semiconductor Products |
Input Type | Standard |
Voltage - Collector Emitter Breakdown (Max) | 1200V |
Current - Collector (Ic) (Max) | 72A |
Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 27A |
Power - Max | 500W |
Mounting Type | Through Hole |
Package / Case | TO-247 |
Packaging | Tube |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | HGTG27N120BN HGTG27N120BN |
