HGTG20N100D2

Features: • 34A, 1000V• Latch Free Operation• Typical Fall Time 520ns• High Input Impedance• Low Conduction LossPinoutSpecificationsCollector-Emitter Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BVCES 1000 VCollector-Gate Volta...

product image

HGTG20N100D2 Picture
See larger image
SeekIC No. : 004362151 Detail

HGTG20N100D2: Features: • 34A, 1000V• Latch Free Operation• Typical Fall Time 520ns• High Input Impedance• Low Conduction LossPinoutSpecificationsCollector-Emitter Voltage . . . . . ...

HGTG20N100D2 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HGTG20N100D2
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 34A, 1000V
• Latch Free Operation
• Typical Fall Time 520ns
• High Input Impedance
• Low Conduction Loss


Pinout

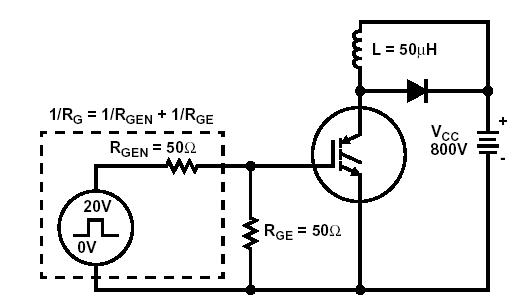

Connection Diagram


Specifications

Collector-Emitter Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BVCES 1000 V
Collector-Gate Voltage RGE = 1MW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BVCGR 1000 V
Collector Current Continuous at TC = +25 . . . . . . . . . . . . . . . . . . . . . . . . . . .  IC25 34 A
Collector Current Continuous at TC = +90 . . . . . . . . . . . . . . . . . . . . . . . . . . . .IC90 20 A
Collector Current Pulsed (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ICM 100 A
Gate-Emitter Voltage Continuous. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  VGES ±20 V
Gate-Emitter Voltage Pulsed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  VGEM ±30 V
Switching Safe Operating Area at TJ = +150 . . . . . . . . . . . . . .  SSOA 100A at 0.8 BVCES
Power Dissipation Total at TC = +25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PD 150 W
Power Dissipation Derating TC > +25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.20 W/
Operating and Storage Junction Temperature Range . . . . . . . . . . .TJ, TSTG -55 to +150
Maximum Lead Temperature for Soldering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TL 260
(0.125 inch from case for 5 seconds)
Short Circuit Withstand Time (Note 2) at V GE= 15V . . . . . . . . . . . . . . . . . . . . . . . .tSC 3 s
Short Circuit Withstand Time (Note 2) at VGE = 10V . . . . . . . . . . . . . . . . . . . . . .  tSC 15 s


Description

The HGTG20N100D2 is a MOS gated high voltage switching device combining the best features of MOSFETs and bipolar transistors. The HGTG20N100D2 has the high input impedance of a MOSFET and the low on-state conduction loss of a bipolar transistor. The much lower on-state voltage drop varies only moderately between +25 and +150.

HGTG20N100D2 IGBTs are ideal for many high voltage switching applications operating at frequencies where low conduction losses are essential, such as: AC and DC motor controls, power supplies and drivers for solenoids, relays and contactors.
