HGTG12N60C3D

Collector- Emitter Voltage VCEO Max : 600 V
Maximum Operating Temperature : + 150 C
Packaging : Tube
Configuration : Single
Maximum Gate Emitter Voltage : +/- 20 V
Package / Case : TO-247-3
Gate-Emitter Leakage Current : +/- 100 nA
Continuous Collector Current at 25 C : 24 A
Collector-Emitter Saturation Voltage : 1.65 V
Power Dissipation : 104 W


Features:

• 24A, 600V at T_C= 25
• Typical Fall Time. . . . . . . . . . . . . . . . 210ns at T_J= 150
• Short Circuit Rating
• Low Conduction Loss
• Hyperfast Anti-Parallel Diode

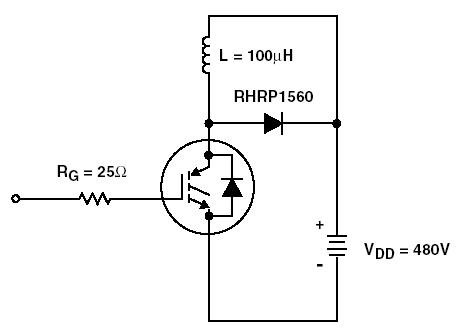

Pinout




Specifications

Collector to Emitter Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .BV_CES 600 V
Collector Current Continuous At T_C= 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   I_C25 24 A
Collector Current Continuous At T_C= 110 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I_C110 12 A
Average Diode Forward Current at 110. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I_(AVG) 15 A
Collector Current Pulsed (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   I_CM 96 A
Gate to Emitter Voltage Continuous. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V_GES ±20 V
Gate to Emitter Voltage Pulsed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .V_GEM±30 V
Switching Safe Operating Area at T_J= 150. . . . . . . . . . . . . . . . . . . . . . . . .SSOA 24A at 600V
Power Dissipation Total at T_C= 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P_D104 W
Power Dissipation Derating T_C> 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.83 W/
Operating and Storage Junction Temperature Range . . . . . . . . . . . . . . . T_J, T_STG -40 to 150
Maximum Lead Temperature for Soldering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T_L 260
Short Circuit Withstand Time (Note 2) at V_GE= 15V . . . . . . . . . . . . . . . . . . . . . . . . . . ..t_SC 4µs
Short Circuit Withstand Time (Note 2) at V_GE= 10V . . . . . . . . . . . . . . . . . . . . . . . . . . t_SC 13µs



Description

The HGTG12N60C3D is a MOS gated high voltage switching device combining the best features of MOSFETs and bipolar transistors. The HGTG12N60C3D has the high input impedance of a MOSFET and the low on-state conduction loss of a bipolar transistor. The much lower on-state voltage drop varies only moderately between 25 and 150.

The HGTG12N60C3D IGBT used is the development type TA49123. The diode used in anti parallel with the IGBT is the development type TA49061. The IGBT is ideal for many high voltage switching applications operating at moderate frequencies where low conduction losses are essential.Formerly Developmental Type TA49117.

Parameters:

Technical/Catalog Information	HGTG12N60C3D
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Input Type	Standard
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	24A
Vce(on) (Max) @ Vge, Ic	2.2V @ 15V, 15A
Power - Max	104W
Mounting Type	Through Hole
Package / Case	TO-247
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	HGTG12N60C3D HGTG12N60C3D
