Features:

• Four ANSI x3.230- 1994 Fibre Channel (FC-O) or IEEE 802.3z Gigabit Ethernet compatible SerDes in a single package
• Supports serial data rates of 1062.5 MBd (Fibre Channel) & 1250 MBd (Gigabit Ethernet)
• Based on X3T11 Fibre Channel "10 bit specification"
• Uses reference clock (RFCT) for Txdata latching
• Half or full speed Rx clocks
• 5-Volt tolerant TTL I/Os
• Low power consumption
• 208 ball, 23 mm TBGA package
• Single +3.3 V power supply
• 1.5 kV ESD protection on all pins
• Equalizers on inputs
• Copper drive capability
• Buffered line logic outputs



Application

• 1250 MBd Gigabit Ethernet high density ports
• 1062.5 MBd Fibre Channel interface
• Mass storage system I/O channel
• Work station/server I/O channel
• FC interface for disk drives and arrays
• Serial backplanes
• Clusters



Pinout

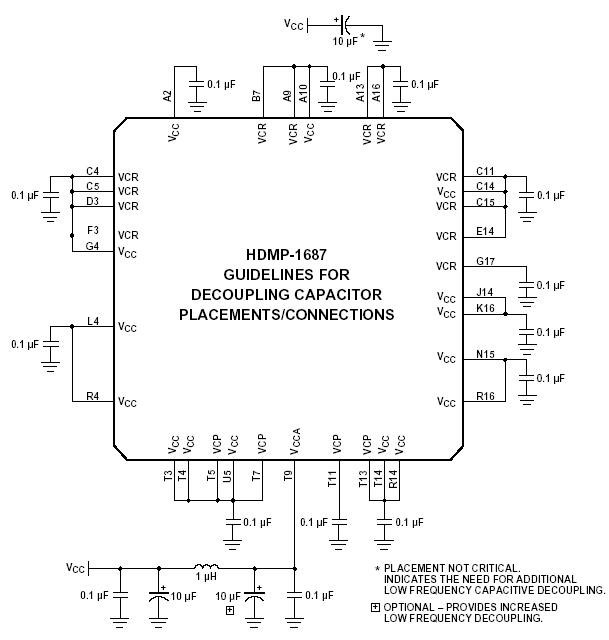

  Connection Diagram


Specifications

Symbol Parameter Units Min. Max.
VCC Supply Voltage V -0.5 65
VIN,TTL TTL Input Voltage V -0.7 VCC +2.8
VIN,HS_IN HS_IN Input Voltage V 2.2
IO,TTL TTL Output Source Current mA ± 13
Tstg Storage Temperature °C 65 +150
Tj Junction Operating Temperature °C 0 +125
TC Case Temperature °C 0 +95



Description

The HDMP-1687 is a four channel SERDES device. HDMP-1687 is in a 208-ball TBGA package with four 1.0625/1.25 Gbps serial I/O. This integrated circuit provides a lowcost, low-power, small-form-factor physical-layer solution for multi-link Gigabit Ethernet/Fibre Channel interfaces. This IC may be used to directly drive copper cables, or it may be used to interface with optical transceivers. Each IC contains transmit and receive channel circuitry for all four channels.

The HDMP-1687 transmitter section accepts 10-bit-wide parallel TTL data on each channel and serializes it into a high-speed serial stream. The parallel data is expected to be 8B/10B encoded (or equivalent). Four banks of parallel data are latched into the input registers of the transmitter sections on the rising edge of RFCT.

Receive data of HDMP-1687are latched out with separate clock pins for each channel. These pins may be single 106.25/125 MHz TTL clock outputs RC [0:3] [1] or dual 53.125/62.5 MHz TTL pairs RC [0:3] [0:1] to serve legacy applications where single SerDes devices were used before. The receive clock mode select (RCM0) pin is used to define the designer's choice.

The SYNC pin of HDMP-1687 enables bytesync detection on all four channels. When a comma character is detected on any channel, its corresponding SYN [0:3] pin goes high. A single LOOP pin is provided for all channels to enable the local loopback function.
