Features:

· The HD49815TF provides camera-signal processing, TG, SSG, zoom, and D/A functions and other functions in a single chip and supports high system-integration level.
· In conjunction with the HD49323AF-01 (CDS/AGC + 10-bit ADC) and the control microcomputer, the HD49815TF forms a three-chip kit that can implement an optimal CCD-camera digital-signalprocessing system.
· The HD49815TF provides the zoom function and controls the 1- to 256- times linear zoom. It also provides the half-mirror function.

Pinout

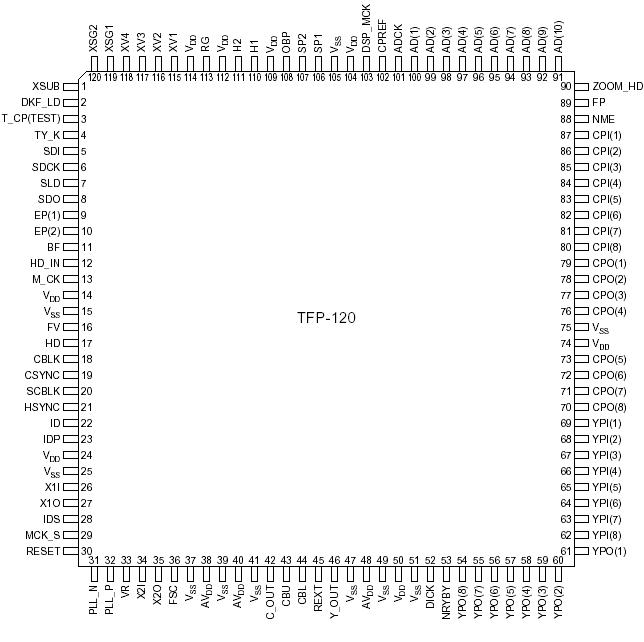

Connection Diagram

Specifications

Item	Symbol	Ratings	Unit
Power supply voltage	V_CC	0.2 to +6.8	V
Pin voltage (5 V operation block)	Vt5V	0.2 to V_CC1 +0.2	V
Pin voltage (3 V operation block)	Vt3V	0.2 to V_CC2 +0.2	V
Output current Per output	Io	32 to +32	mA
Output current Per GND-VCC pair	Iot	72 to +72	mA
Allowable power dissipation	Popr	450	mW
Operating temperature	Topr	10 to +75	°C
Storage temperature With bias	Tbias	10 to +75	°C
Storage temperature Without bias	Tstg	40 to +125	°C

Description

The HD49815TF is a CMOS IC that has been developed as a digital signal-processing IC for CCD-camera digital-signal-processing systems.
