HD49307

Features: ` Resolution: 8 bits` Linearity error: ±0.2%` Current output type: 13.3 mA ´ 3 channels` Maximum conversion rate: 30 MHz (Min)` Analogue output voltage range: VDD to VDD 1 V` Digital input voltage: TTL and CMOS level` Power supply voltage: +5.0 V single` Power consumption: 300 mW ...

product image

HD49307 Picture
See larger image
SeekIC No. : 004360104 Detail

HD49307: Features: ` Resolution: 8 bits` Linearity error: ±0.2%` Current output type: 13.3 mA ´ 3 channels` Maximum conversion rate: 30 MHz (Min)` Analogue output voltage range: VDD to VDD 1 V` Digita...

HD49307 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HD49307
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  Resolution: 8 bits
`  Linearity error: ±0.2%
`  Current output type: 13.3 mA ´ 3 channels
`  Maximum conversion rate: 30 MHz (Min)
`  Analogue output voltage range: VDD to VDD 1 V
`  Digital input voltage: TTL and CMOS level
`  Power supply voltage: +5.0 V single
`  Power consumption: 300 mW (Typ)


Pinout

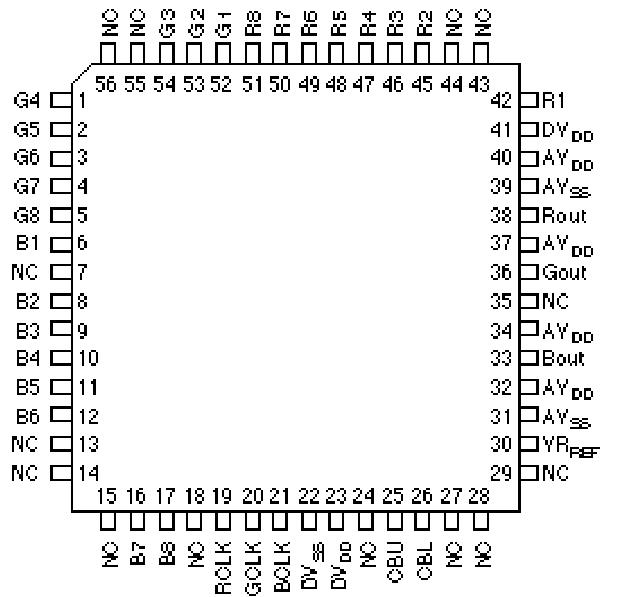

Connection Diagram


Specifications

Item Symbol Rated value Unit
Power supply voltage VDD +6.0 V
Digital input voltage VIN 0.3 to VDD + 0.3 V
Allowable dissipation PT 600 mW
Operating temperature Topr 0 to +70 °C
Storage temperature Tstg 55 to +125 °C



Description

The HD49307 is a high-speed, low-power 8-bit D/A converter monolithic CMOS LSI which has three channels of clock and RGB data inputs. It is appropriate for applications which require three channel systems, such as digital TV and graphical displays.
