HD49801FB

Features: • G e n e rates high quality ch roma and luminance signals using three-line mat rix pro c e s s i n g supported by a built-in line memory (1H×2).• A l l ows micro p rocessor control (over a seri a linterface) of all image quality controls.• Handles all fo rm ats; NTSC, ...

product image

HD49801FB Picture
See larger image
SeekIC No. : 004360115 Detail

HD49801FB: Features: • G e n e rates high quality ch roma and luminance signals using three-line mat rix pro c e s s i n g supported by a built-in line memory (1H×2).• A l l ows micro p rocessor co...

HD49801FB Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HD49801FB
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• G e n e rates high quality ch roma and luminance signals using three-line mat rix pro c e s s i n g supported by a built-in line memory (1H×2).
• A l l ows micro p rocessor control (over a seri a linterface) of all image quality controls.
• Handles all fo rm ats; NTSC, PAL, SECAM ( h oweve r, does not include a SECAM encoder).
• Handles 510H/760H CCD image sensors.


Pinout

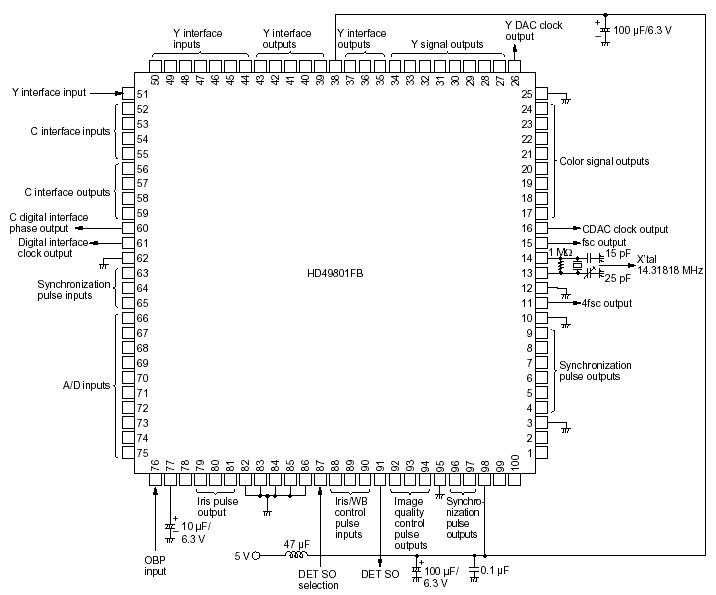

Connection Diagram


Specifications

Item Symbol Ratings Unit
Power supply voltage VCC 0.3 to +6.7 V
Pin voltage Vti 0.3 to VCC + 0.3 V
Pin voltage Vto 0.3 to VCC + 0.3 V
Output voltages Corresponding to one output Io 16 to +16 mA
Output voltages Corresponding to one GND to VCC Iot 70 to +70 mA
Operating temperature Topr 10 to +75 °C
Storage temperature Tstg 55 to +125 °C



Description

The HD49801FB is an IC that integrates all the functions re q u i red for CCD camera s ignal processing (except the CDS and AGC blocks) in a single chip.
