HD151TS307ARP

Features: • Supports 10 MHz to 60 MHz operation. (Designed for XIN = 24 MHz and 48 MHz)• 1 copy of clock out with spread spectrum modulation @3.3 V• Programmable spread spectrum modulation (±0.25%, ±0.5%, ±1.5% central spread modulation and spread pectrum disable mode.)• SO...

product image

HD151TS307ARP Picture
See larger image
SeekIC No. : 004360028 Detail

HD151TS307ARP: Features: • Supports 10 MHz to 60 MHz operation. (Designed for XIN = 24 MHz and 48 MHz)• 1 copy of clock out with spread spectrum modulation @3.3 V• Programmable spread spectrum mo...

HD151TS307ARP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HD151TS307ARP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Supports 10 MHz to 60 MHz operation. (Designed for XIN = 24 MHz and 48 MHz)
• 1 copy of clock out with spread spectrum modulation @3.3 V
• Programmable spread spectrum modulation (±0.25%, ±0.5%, ±1.5% central spread modulation and spread  pectrum disable mode.)
• SOP8pin

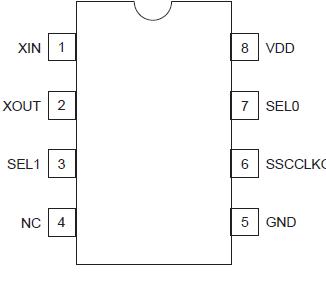

Pinout

Connection Diagram


Specifications

Item Symbol Ratings Unit Conditions
Supply voltage VDD 0.5 to 4.6 V
Input voltage VI 0.5 to 4.6 V
Output voltage *1 VO 0.5 to VDD+0.5 V
Input clamp current IIK 50 mA VI < 0
Output clamp current IOK 50 mA VO < 0
Continuous output current IO ±50 mA VO = 0 to VDD
Maximum power dissipation
at Ta = 55°C (in still air)

0.7



 W
Storage temperature Tstg 65 to +150

Notes: Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device.
These are stress ratings only, and functional operation of the device at these or any other conditions beyond
those indicated under "recommended operating conditions" is not implied. Exposure to absolute maximum rated
conditions for extended periods may affect device reliability.
1. The input and output negative voltage ratings may be exceeded if the input and output clamp current ratings
are observed.




Description

The HD151TS307ARP is a high-performance Spread Spectrum Clock modulator. It is suitable for low EMI solution.
