HD151005

Features: · Wired connection available with open drain outputs· Output voltage: 30 V Max· Output current: 100 mA Max· Ensures VOL 0.4 V when the output current is 48 mA· Low power dissipation: 10 µAPinoutSpecifications Item Symbol Ratings Unit Supply voltage VCC 0.5 to 7.0 V...

product image

HD151005 Picture
See larger image
SeekIC No. : 004360012 Detail

HD151005: Features: · Wired connection available with open drain outputs· Output voltage: 30 V Max· Output current: 100 mA Max· Ensures VOL 0.4 V when the output current is 48 mA· Low power dissipation: 10 &m...

HD151005 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HD151005
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  Wired connection available with open drain outputs
·  Output voltage: 30 V Max
·  Output current: 100 mA Max
·  Ensures VOL 0.4 V when the output current is 48 mA
·  Low power dissipation: 10 µA


Pinout

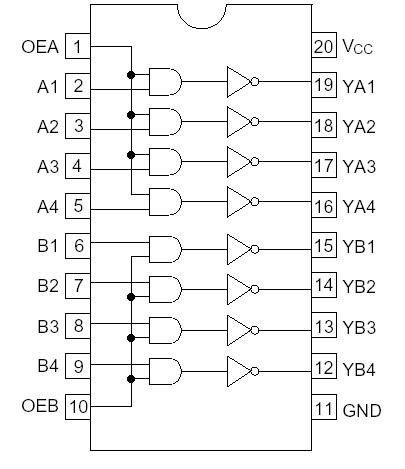

Connection Diagram


Specifications

Item Symbol Ratings Unit
Supply voltage VCC 0.5 to 7.0 V
Input voltage VIN 0.5 to VCC + 0.5 V
Input Current IIN 10 to +0.1 mA
Output voltage VOUT -0.5 to +30 V
Output Current IOUT +100 mA/Unit
Power Dissipation PT 835 (FP), 1375 (DP) mW
Storage Temperature Range Tstg 65 to +150 °C
Note: 1. The absolute maximum ratings are values which must not individually be exceeded, and furthermore, no two of which may be realized at the same time.


Description

The HD151005 features octal inverter buffers and drivers with open drain high voltage outputs with Nchannel power MOSFET.
