Product Details

Description



Features:

• Supports 60 MHz to 160 MHz operation. (Designed @ SSCCLKOUT = 72 MHz)
• 1 copy of finx4 clock out with Spread Spectrum Modulation @3.3 V
• 1 copy of reference clock @3.3 V
• Programmable Spread Spectrum Modulation (±0.25%, ±0.5%, ±1.5% Central Spread Modulation and Spread
Spectrum disable mode)
• SOP-8pin

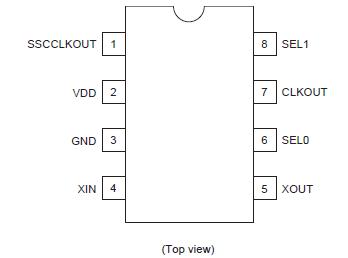

Pinout

Connection Diagram


Specifications

Item
Symbol
Ratings
Unit
Conditions
Supply voltage
VDD
0.5 to 4.6
V
Input voltage
VI
0.5 to 4.6
V
Output voltage *1
VO
0.5 to VDD+0.5
V
Input clamp current
IIK
50
mA
Output clamp current
IOK
50
mA
Continuous output current
IO
±50
mA
Maximum power dissipation
at Ta = 55°C (in still air)
0.7
W
Storage temperature
Tstg
65 to +150



Description

The HD151TS305 is a high-performance Spread Spectrum Clock modulator. It is suitable for low EMI solution.
