HD151012

Features:

·  High speed operation tpd (CLK or CLK to Q) = 35 ns (typ)
·  High output current Fanout of 10 LS TTL Loads
·  Wide operating voltage V_CC = 2 to 6 V
·  Low supply current (Ta = 25°C) I_CC (Static) = 4 µA (max)

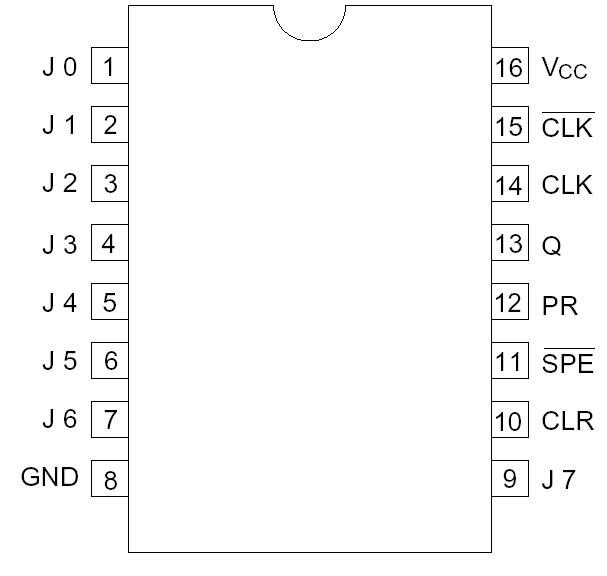

Pinout




Specifications

Item	Symbol	Ratings	Unit
Supply voltage	VCC	0.5 to +7.0	V
Input / output voltage	VIN/VOUT	0.5 to VCC +0.5	V
VCC, GND current	ICC, IGND	±50	mA
Output current / pin	IOUT	±25	mA
Power dissipation	PT	500	mW
Storage temperature	Tstg	65 to 150	°C
Input diode current	IIK	±20	mA
Output diode current	IOK	±20	mA

Description

The HD151012 has 8-bit binary down counter and D-type Flip Flop. The HD151012 counter can set up to max 256 counts and synchronous preset (SPE ) input can preset the data. When the count value is 0, the next clock pulse presets the data to invert the output. D-type Flip Flop takes the counter output as clock pulse, whose data is transferred to output at the rise edge. It is applied to generate AC signal for STN type liquid crystal and general-use divider.
