HCT4067

Features: ` Low ON resistance:80 (typ.) at VCC = 4.5 V70 (typ.) at VCC = 6.0 V60 (typ.) at VCC = 9.0 Vtypical break before make built-in` Output capability: non-standard` ICC category: MSIApplication· Analog multiplexing and demultiplexing· Digital multiplexing and demultiplexing· Signal ga...

product image

HCT4067 Picture
See larger image
SeekIC No. : 004359897 Detail

HCT4067: Features: ` Low ON resistance:80 (typ.) at VCC = 4.5 V70 (typ.) at VCC = 6.0 V60 (typ.) at VCC = 9.0 Vtypical break before make built-in` Output capability: non-standard` ICC category: MSIApp...

HCT4067 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HCT4067
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Low "ON" resistance:
 80 (typ.) at VCC = 4.5 V
 70 (typ.) at VCC = 6.0 V
 60 (typ.) at VCC = 9.0 V
 typical "break before make" built-in
` Output capability: non-standard
` ICC category: MSI


Application

· Analog multiplexing and demultiplexing
· Digital multiplexing and demultiplexing
· Signal gating


Pinout

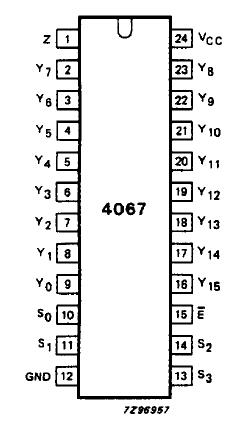

Connection Diagram


Specifications

Limiting values in accordance with the Absolute Maximum System (IEC 134)
Voltages are referenced to GND (ground = 0 V)

Symbol
PARAMETER
MIN.
MAX.
UNIT
CONDITIONS
VCC
 DC supply voltage
-0.5
+11.0
V

±IIK
DC digital input diode current
20
mA
 for VI < -0.5 V or VI > VCC + 0.5 V
±ISK
 DC switch diode current
20
mA
 for VS < -0.5 V or VS > VCC + 0.5 V
±IS
 DC switch current
25
mA
 for -0.5 V < VS < VCC + 0.5 V
±ICC; ±IGND
 DC VCC or GND current
50
mA
Tstg
 storage temperature range
-65
+150
°C
Ptot
 power dissipation per package
plastic DIL
750
mW
 for temperature range: -40 to +125 °C
74HC/HCT
above +70 °C: derate linearly with 12 mW/K
plastic mini-pack (SO)
500
mW
 above +70 °C: derate linearly with 8 mW/K
PS
 power dissipation per switch
100
mW




Description

The 74HC/HCT4067 are high-speed Si-gate CMOS devices and are pin compatible with the "4067" of the "4000B" series. They are specified in compliance with JEDEC standard no. 7A.The 74HC/HCT4067 are 16-channel analog multiplexers/demultiplexers with four address inputs (S0 to S3) , an active LOW enable input (E), sixteen independent inputs/outputs (Y0 to Y15) and a common input/output (Z). The "4067" contains sixteen bidirectional analog switches, each with one side connected to an independent input/output (Y0 to Y15) and the other side connected to a common input/output (Z).

With E LOW, one of the sixteen switches is selected (low impedance ON-state) by S0 to S3. All 74HC/HCT4067 unselected switches are in the high impedance OFF-state. With E HIGH, all switches are in the high impedance OFF-state, independent of S0 to S3. The analog inputs/outputs (Y0 to Y15, and Z) can swing between VCC as a positive limit and GND as a negative limit. VCC to GND may not exceed 10 V.
