HCF4532B

Features: ` CONVERTS FROM 1 TO 8 TO INPUTS BINARY` PROVIDES CASCADING FEATURE TO HANDLE ANY NUMBER OF INPUTS` GROUP SELECT INDICATES ONE OR MORE PRIORITY INPUTS`QUIESCENT CURRENT SPECIFIED UP TO 20V` STANDARDIZED SYMMETRICAL OUTPUT CHARACTERISTICS`5V, 10V AND 15V PARAMETRIC RATINGS` INPUT LEAKAGE ...

product image

HCF4532B Picture
See larger image
SeekIC No. : 004359716 Detail

HCF4532B: Features: ` CONVERTS FROM 1 TO 8 TO INPUTS BINARY` PROVIDES CASCADING FEATURE TO HANDLE ANY NUMBER OF INPUTS` GROUP SELECT INDICATES ONE OR MORE PRIORITY INPUTS`QUIESCENT CURRENT SPECIFIED UP TO 20V...

HCF4532B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HCF4532B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` CONVERTS FROM 1 TO 8 TO INPUTS BINARY
` PROVIDES CASCADING FEATURE TO HANDLE ANY NUMBER OF INPUTS
` GROUP SELECT INDICATES ONE OR MORE PRIORITY INPUTS
`QUIESCENT CURRENT SPECIFIED UP TO 20V
` STANDARDIZED SYMMETRICAL OUTPUT CHARACTERISTICS
`5V, 10V AND 15V PARAMETRIC RATINGS
` INPUT LEAKAGE CURRENT
    II = 100nA (MAX) AT VDD = 18V TA = 25
` 100% TESTED FOR QUIESCENT CURRENT
` MEETS ALL REQUIREMENTS OF JEDEC JESD13B "STANDARD SPECIFICATIONS FOR DESCRIPTION OF B SERIES
    CMOS DEVICES"


Pinout

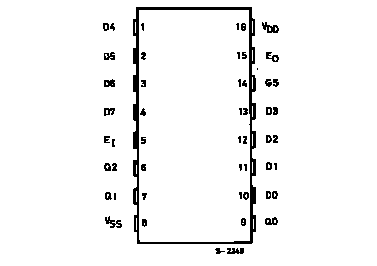

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
VDD
 Supply Voltage
-0.5 to +22
V
VI
 DC Input Voltage
-0.5 to VDD + 0.5
V
II
 DC Input Current
± 10
mA
PD
 Power Dissipation per Package
200
mW
Power Dissipation per Output Transistor
100
mW
Top
 Operating Temperature
-55 to +125
Tstg
 Storage Temperature
-65 to +150
Absolute Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation under these conditions is not implied.

All voltage values are referred to VSS pin voltage.


Description

HCF4532B is a monolithic integrated circuit fabricated in Metal Oxide Semiconductor technology available in DIP and SOP packages.

HCF4532B consists of a combinational logic that encodes the highest priority input (D7-D0) to a 3-bit binary code. The eight inputs, D7 through D0, each have an assigned priority. D7 is the highest priority and D0 is the lowest. The priority encoder is inhibited when the chip enable input EI is low. When EI is high, the binary representation of the highest priority input appears on output lines Q2-Q0, and the group select line GS is high to indicate that priority inputs are present. The enable out (EO) is high when no priority inputs are present. If any input is high, EO is low and all cascaded lower order stages are disabled.
