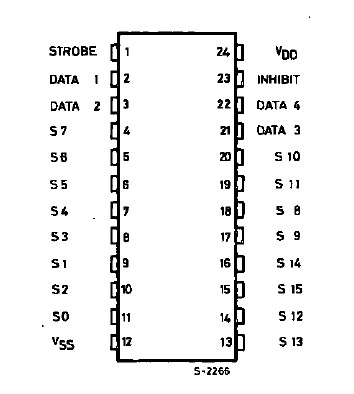

PinoutSpecifications Symbol Parameter Value Unit VDD* Supply Voltage :HCC TypesHCF Types 0.5 to + 20 0.5 to + 18 VV Vi Input Voltage 0.5 to VDD + 0.5 VV II DC Input Current (any one input) ± 10 mA Pto t Total Power Dissipation (per package)Dissipation per Output Tra...
HCF4514B: PinoutSpecifications Symbol Parameter Value Unit VDD* Supply Voltage :HCC TypesHCF Types 0.5 to + 20 0.5 to + 18 VV Vi Input Voltage 0.5 to VDD + 0.5 VV II DC Input Current...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol | Parameter | Value | Unit |
VDD* | Supply Voltage :HCC Types HCF Types |
0.5 to + 20 0.5 to + 18 |
V V |
Vi | Input Voltage | 0.5 to VDD + 0.5 | V V |
II | DC Input Current (any one input) | ± 10 | mA |
Pto t | Total Power Dissipation (per package) Dissipation per Output Transistor for To p = Full Package-temperature Range |
200 100 |
mW mW |
Top | Operating Temperature : HCC Types HCF Types |
55 to + 125 40 to + 85 |
°C °C |
Ts tg | Storage Temperature | 65 to + 150 | °C |
In the HCC/HCF4514B/4515B series, the HCC4514B/HCC4515B (extended temperature range) and the HCF4514B/HCF4515B (intermediate temperature range) are monolithic integrated circuits available in 24-lead dual in-line plastic or ceramic package and plastic micro package. The HCC/HCF4514B/4515B consisting of a 4-bit strobed latch and a 4 to 16 line decoder. The latches hold the last input data presented prior to the strobe transition from 1 to 0. Inhibit control allows all outputs to be placed at0 (HCC/HCF4514B)or1(HCC/HCF4515B) regardless of thestateofthedata or strobe inputs.The decode truth table indicates all combinations of data inputs and appropriate selected outputs.
