Features:

`  SCHMITT TRIGGER ACTION ON EACH INPUT WITH NO EXTERNAL COMPONENTS
`  HYSTERESIS VOLTAGE TYPICALLY 0.9V at VDD = 5V AND 2.3V at VDD = 10V
`  NOISE IMMUNITY GREATER THAN 50%OF VDD (Typ.)
`  NO LIMIT ON INPUT RISE AND FALL TIMES
`  QUIESCENT CURRENT SPECIFIED UP TO 20V
`  STANDARDIZED SYMMETRICAL OUTPUT CHARACTERISTICS
`  5V, 10V AND 15V PARAMETRIC RATINGS
`  INPUT LEAKAGE CURRENT II = 100nA (MAX) AT VDD = 18V TA = 25
`  100% TESTED FOR QUIESCENT CURRENT
`  MEETS ALL REQUIREMENTS OF JEDEC JESD13B " STANDARD SPECIFICATIONS FOR DESCRIPTION OF B SERIES CMOS DEVICES"




Pinout

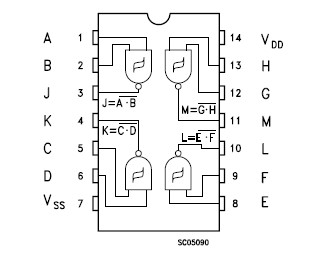

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VDD
 Supply Voltage
0.5 to + 20
V
V
Vi
 DC Input Voltage
0.5 to VDD + 0.5
V
II
 DC Input Current
± 10
mA
PD
 Power Dissipation per Package
200
mW
mW
Power Dissipation per Output Transistor
100
Top
 Operating Temperature
55 to + 125

Tstg
 Storage Temperature
65 to + 150

Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is not implied.

All voltage values are referred to VSS pin voltage.




Description

The HCF4093B is a monolithic integrated circuit fabricated in Metal Oxide Semiconductor technology available in DIP and SOP packages.

The HCF4093B type consists of four schmitt trigger circuits. Each circuit functions as a two input NAND gate with schmitt trigger action on both inputs. The gate switches at different points for positive and negative going signals. The difference between the positive voltage (VP) and the negative voltage (VN) is defined as hysteresis voltage (VH).
