Features:

` MEDIUM-SPEED OPERATION t_PHL = 90ns, t_PLH = 140ns (Typ.) at 10V
` INHIBIT AND ENABLE INPUTS
` QUIESCENT CURRENT SPECIFIED UP TO 20V
` STANDARDIZED SYMMETRICAL OUTPUT CHARACTERISTICS
` 5V, 10V AND 15V PARAMETRIC RATINGS
` INPUT LEAKAGE CURRENT I_I = 100nA (MAX) AT V_DD = 18V T_A = 25
` 100% TESTED FOR QUIESCENT CURRENT
` MEETS ALL REQUIREMENTS OF JEDEC JESD13B "STANDARD SPECIFICATIONS FOR DESCRIPTION OF B SERIES CMOS DEVICES"

Pinout

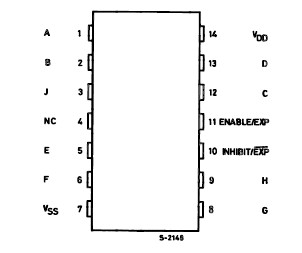

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_DD	Supply Voltage	-0.5 to +22	V
V_I	DC Input Voltage	-0.5 to V_DD + 0.5	V
I_I	DC Input Current	± 10	mA
P_D	Power Dissipation per Package	200	mW
P_D	Power Dissipation per Output Transistor	100	mW
T_op	Operating Temperature	-55 to +125
T_stg	Storage Temperature	-65 to +150

Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is not implied.

All voltage values are referred to V_SS pin voltage.

Description

HCF4086B is a monolithic integrated circuit fabricated in Metal Oxide Semiconductor technology available in DIP and SOP packages.

HCF4086B contains one 4-wide 2-input AND-OR INVERT gates with an INHIBIT EXP input and an ENABLE/EXP input. INHIBIT/EXP is tied to V_SS and ENABLE/EXP to V_DD. For a 4 wide A-O-I function.
