HCF4077B

Features:

`MEDIUM-SPEED OPERATION tPHL = tPLH = 70ns (typ.) AT VCC = 10V, CL = 50pF
`QUIESCENT CURRENT SPECIFIED TO 20V FOR HCC DEVICE .5V, 10V AND 15V PARAMETRIC RATING
`INPUT CURRENT OF 100nA AT 18V AND 25 FOR HCC DEVICE
`100% TESTEDFOR QUIESCENT CURRENT
`MEETSALLREQUIREMENTSOFJEDECTENTATIVE STANDARD No. 13A, "STANDARD SPECIFICATIONS FOR DESCRIPTION OF "B"SERIESCMOS DEVICES"

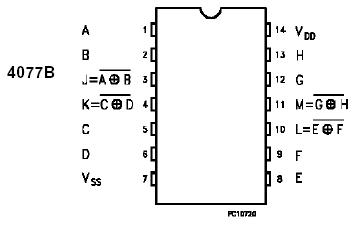

Pinout

Specifications

Symbol	Parameter	Value	Unit
VDD*	Supply Voltage :HCC Types HCF Types	0.5 to + 20 0.5 to + 18	V V
Vi	Input Voltage	0.5 to VDD + 0.5	V
II	DC Input Current (any one input)	± 10	mA
Ptot	Total Power Dissipation (per package) Dissipation per Output Transistor for Top = Full Package-temperature Range	200 100	mW mW
Top	Operating Temperature : HCC Types HCF Types	55 to + 125 40 to + 85
Tstg	Storage Temperature	65 to + 150

Description

In the HCC/HCF4070B and HCC/HCF4077B  series, the HCC4070B/4077B (extended temperature range) and HCF4070B/4077B (intermediate temperature range) are monolithic integrated circuits, available in 14-lead dual in-line plastic or ceramic package and plastic micropackage. TheHCC/HCF4070B contains four independent exclusive- OR gates.The HCC/HCF4077B contains four independent exclusive- NOR gates.

The HCC/HCF4070B and HCC/HCF4077B provide the system designer with a means for direct implementation of the exclusive-OR and exclusive- NOR function, respectively. For applications as Logical comparators, Adders/subtractors, Parity generators and checkers.
