HCF4072BM1

Features: MEDIUM SPEED OPERATION :tPD = 60ns (TYP.) at VDD = 10VQUIESCENT CURRENT SPECIFIED UP TO 20V5V, 10V AND 15V PARAMETRIC RATINGSINPUT LEAKAGE CURRENT II = 100nA (MAX) AT VDD = 18V TA = 25°C100% TESTED FOR QUIESCENT CURRENTMEETS ALL REQUIREMENTS OF JEDEC JESD13B STANDARD SPECIFICATIONS FOR...

product image

HCF4072BM1 Picture
See larger image
SeekIC No. : 004359681 Detail

HCF4072BM1: Features: MEDIUM SPEED OPERATION :tPD = 60ns (TYP.) at VDD = 10VQUIESCENT CURRENT SPECIFIED UP TO 20V5V, 10V AND 15V PARAMETRIC RATINGSINPUT LEAKAGE CURRENT II = 100nA (MAX) AT VDD = 18V TA = 25°C10...

HCF4072BM1 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HCF4072BM1
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 MEDIUM SPEED OPERATION :tPD = 60ns (TYP.) at VDD = 10V
 QUIESCENT CURRENT SPECIFIED UP TO 20V
 5V, 10V AND 15V PARAMETRIC RATINGS
 INPUT LEAKAGE CURRENT II = 100nA (MAX) AT VDD = 18V TA = 25°C
 100% TESTED FOR QUIESCENT CURRENT
 MEETS ALL REQUIREMENTS OF JEDEC JESD13B " STANDARD SPECIFICATIONS FOR DESCRIPTION OF B SERIES CMOS DEVICES"



Pinout

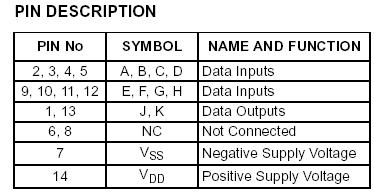

Connection Diagram Connection Diagram


Specifications

Symbol Parameter Value Unit
VDD Supply Voltage -0.5 to +22 V
VI DC Input Voltage -0.5 to VDD + 0.5 V
II DC Input Current ± 10 mA
PD Power Dissipation per Package 200 mW
Power Dissipation per Output Transistor 100 mW
Top Operating Temperature -55 to +125 °C
Tstg Storage Temperature -65 to +150 °C



Description

 The HCF4072B is a monolithic integrated circuit fabricated in Metal Oxide Semiconductor technology available in DIP and SOP packages.

  The HCF4072B DUAL 4 INPUT OR GATE provides the system designer with direct implementation of the positive logic OR function and supplement the existing family of CMOS gates.
