HCF4066B

Features: ` 15V DIGITAL OR ± 7.5V PEAK TO PEAK SWITCHING` 125 TYPICAL ON RESISTANCE FOR 15V OPERATION` SWITCH ON RESISTANCE MATCHED TO WITHIN 5 TYP. OVER 15V SIGNAL INPUT RANGE` ON RESISTANCE FLAT OVER FULL PEAK TO PEAK SIGNAL RANGE` HIGH ON/OFF OUTPUT VOLTAGE RATIO : 65dB TYP. at fIS = 10KHz, RL ...

product image

HCF4066B Picture
See larger image
SeekIC No. : 004359674 Detail

HCF4066B: Features: ` 15V DIGITAL OR ± 7.5V PEAK TO PEAK SWITCHING` 125 TYPICAL ON RESISTANCE FOR 15V OPERATION` SWITCH ON RESISTANCE MATCHED TO WITHIN 5 TYP. OVER 15V SIGNAL INPUT RANGE` ON RESISTANCE FLAT O...

HCF4066B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HCF4066B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/9/16

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 15V DIGITAL OR ± 7.5V PEAK TO PEAK SWITCHING
` 125 TYPICAL ON RESISTANCE FOR 15V OPERATION
` SWITCH ON RESISTANCE MATCHED TO WITHIN 5 TYP. OVER 15V SIGNAL INPUT RANGE
` ON RESISTANCE FLAT OVER FULL PEAK TO PEAK SIGNAL RANGE
` HIGH ON/OFF OUTPUT VOLTAGE RATIO : 65dB TYP. at fIS = 10KHz, RL = 10K
` HIGH DEGREE OF LINEARITY : < 0.5% DISTORTION TYP. at fIS = 1KHz, VIS = 5 Vpp, VDD - VSS > 10V, RL = 10K
` EXTREMELY LOW OFF SWITCH LEAKAGE RESULTING IN VERY LOW OFFSET CURRENT AND HIGH EFFECTIVE OFF
    RESISTANCE : 10pA TYP. at VDD - VSS = 10V, Tamb = 25
` EXTREMELY HIGH CONTROL INPUT IMPEDANCE (control circuit isolated from signal circuit 1012 typ.)
` LOW CROSSTALK BETWEEN SWITCHES : 50dB Typ. at fIS = 0.9MHz, RL = 1K
` MATCHED CONTROL - INPUT TO SIGNAL OUTPUT CAPACITANCE : REDUCES OUTPUT SIGNAL TRANSIENTS
` FREQUENCY RESPONSE SWITCH ON : 40MHz (Typ.)
` QUIESCENT CURRENT SPECIF. UP TO 20V
` 5V, 10V AND 15V PARAMETRIC RATINGS
` INPUT LEAKAGE CURRENT II = 100nA (MAX) AT VDD = 18V TA = 25
` 100% TESTED FOR QUIESCENT CURRENT
` MEETS ALL REQUIREMENTS OF JEDEC JESD13B " STANDARD SPECIFICATIONS FOR DESCRIPTION OF B SERIES
    CMOS DEVICES"

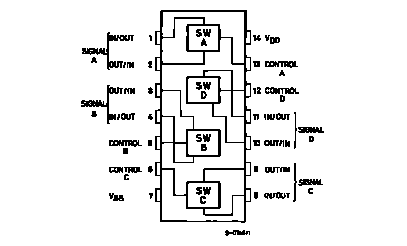

Pinout

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
VDD
 Supply Voltage
-0.5 to +22
V
VI
 DC Input Voltage
-0.5 to VDD + 0.5
V
II
 DC Input Current
± 10
mA
PD
 Power Dissipation per Package
200
mW
Power Dissipation per Output Transistor
100
mW
Top
 Operating Temperature
-55 to +125
Tstg
 Storage Temperature
-65 to +150
Absolute Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation under these conditions is not implied.

All voltage values are referred to VSS pin voltage.


Description

The HCF4066B is a monolithic integrated circuit fabricated in Metal Oxide Semiconductor technology available in DIP and SOP packages.

The HCF4066B is a QUAD BILATERAL SWITCH intended for the transmission or multiplexing of analog or digital signals. It is pin for pin compatible with HCF4016B, but exhibits a much lower ON resistance. In addition,
