Features: QUIESCENT CURRENT SPECIFIED TO 20VFOR HCC DEVICE
STANDARD B-SERIES OUTPUT DRIVE
EXPANSION TO8-16V...4NBITSBYCASCAD. ING UNITS
MEDIUM SPEED OPERATION : COMPARES TWO 4-BIT WORDS IN 250ns (typ.) AT 10V
INPUT CURRENT OF 100nA AT 18V AND 25°C FOR HCC DEVICE .
100% TESTEDFOR QUIESCENT CURRENT
MEETSALLREQUIREMENTSOFJEDECTENTATIVESTANDARDN° 13A, "STANDARD SPECIFICATIONS FOR DESCRIPTION OF "B" SERIESCMOS DEVICES"

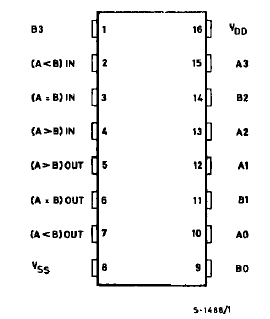

Pinout
Specifications
| Symbol |
Parameter |
Value |
Unit |
| VDD* |
Supply Voltage :HCC Types
HCF Types |
0.5 to + 20
0.5 to + 18 |
v
v |
| Vi |
Input Voltage |
0.5 to VDD + 0.5 |
v |
| II |
DC Input Current (any one input) |
± 10 |
mA |
| Pt ot |
Total Power Dissipation (per package)
Dissipation per Output Transistor
for Top = Full Package-temperature Range |
200
100 |
mw
mw
|
| Tpo |
Operating Temperature : HCC Types
HCF Types |
55 to + 125
40 to + 85 |
°C
°C |
| Ts tg |
Operating Temperature : HCC Types
HCF Types |
65 to + 150 |
°C |
DescriptionThe HCC4063B (extended temperature range) and HCF4063B (intermediate temperature range) are available in 16-lead dual in-line plastic or ceramic package and plastic micro package. The HCC/HCF4063B is a low-power 4-bit magnitude comparator designed for use in computer and logic applications that require the comparison of two 4-bit words. This logic circuit determines whether one 4- bit word (Binary or BCD) is "less than", "equal to" or "greater than" a second 4-bit word. The HCC/HCF4063B has eight comparing inputs (A3, B3, through A0, B0), three outputs (A < B, A = B, A > B) and three cascading inputs (A < B, A = B, A > B) that permit systems designers to expand the comparator function to 8, 12, 16...4 N bits. When a single HCC/HCF4063B is used, the cascading inputs are connected as follows : (A < B) = low, (A = B) = high, (A > B) = low. For words longer than 4 bits, HCC/HCF4063B devices may be cascaded by connecting the outputs of the less-significant comparator to the corresponding cascading inputs of the more-significant comparator. Cascading inputs (A < B, A = B, and A > B) on the least significant comparator are connected to a low, a high, and a low level, respectively.
