HCF4052B

Features: ` LOW ON RESISTANCE : 125 (Typ.) OVER 15V p.p SIGNAL-INPUT RANGE FOR VDD - VEE = 15V` HIGH OFF RESISTANCE : CHANNEL LEAKAGE ± 100pA (Typ.) at VDD - VEE = 18V` BINARY ADDRESS DECODING ON CHIP` HIGH DEGREE OF LINEARITY : < 0.5% DISTORTION TYP. at fIS = 1KHz, VIS = 5 Vpp, VDD - VSS &...

product image

HCF4052B Picture
SeekIC No. : 004359667 Detail

HCF4052B: Features: ` LOW ON RESISTANCE : 125 (Typ.) OVER 15V p.p SIGNAL-INPUT RANGE FOR VDD - VEE = 15V` HIGH OFF RESISTANCE : CHANNEL LEAKAGE ± 100pA (Typ.) at VDD - VEE = 18V` BINARY ADDRESS DECODING O...

floor Price/Ceiling Price

Part Number:
HCF4052B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` LOW "ON" RESISTANCE : 125 (Typ.) OVER 15V p.p SIGNAL-INPUT RANGE FOR VDD - VEE = 15V
` HIGH "OFF" RESISTANCE : CHANNEL LEAKAGE ± 100pA (Typ.) at VDD - VEE = 18V
` BINARY ADDRESS DECODING ON CHIP
` HIGH DEGREE OF LINEARITY : < 0.5% DISTORTION TYP. at fIS = 1KHz, VIS = 5 Vpp, VDD - VSS > 10V, RL = 10K
` VERY LOW QUIESCENT POWER DISSIPATION UNDER ALL DIGITAL CONTROL INPUT AND SUPPLY CONDITIONS : 0.2 W (Typ.)
    at VDD - VSS = VDD - VEE =10V
` MATCHED SWITCH CHARACTERISTICS : RON = 5 (Typ.) FOR VDD - VEE = 15V
` WIDE RANGE OF DIGITAL AND ANALOG SIGNAL LEVELS : DIGITAL 3 to 20, ANALOG TO 20V p.p.
` QUIESCENT CURRENT SPECIF. UP TO 20V
` 5V, 10V AND 15V PARAMETRIC RATINGS
`INPUT LEAKAGE CURRENT II = 100nA (MAX) AT VDD = 18V TA = 25°C
` 100% TESTED FOR QUIESCENT CURRENT
`MEETS ALL REQUIREMENTS OF JEDEC JESD13B " STANDARD SPECIFICATIONS FOR DESCRIPTION OF B SERIES CMOS DEVICES"



Pinout

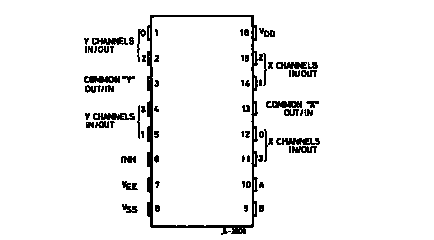

  Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VDD
Supply Voltage
-0.5 to +22
V
VI
DC Input Voltage
-0.5 to VDD + 0.5
V
II
DC Input Current
± 10
mA
PD
Power Dissipation per Package
500(*)
mW
Power Dissipation per Output Transistor
100
mW
Top
Operating Temperature
-55 to +125
Tstg
Storage Temperature
-65 to +150
Absolute Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation under these conditions is not implied.

All voltage values are referred to VSS pin voltage.

(*) 500mW at 65; derate to 300mW by 10mW/ from 65 to 85


Description

The HCF4052B is a monolithic integrated circuit fabricated in Metal Oxide Semiconductor technology available in DIP and SOP packages. The HCF4052B analog multiplexer/demultiplexer is a digitally controlled analog switch having low ON impedance and very low OFF leakage current. This multiplexer circuit dissipate extremely low quiescent power over the full VDD - VSS and VDD - VEE supply voltage range, independent of the logic state of the control signals. When a logic "1" is present at the inhibit input terminal all channel are off. This device is a differential 4-channel multiplexer having two binary control inputs, A and B and an inhibit input. The two binary input signals selects 1 of 4 pairs of channels to be turned on and connect the analog inputs to the outputs.
