HCF4015B

Features:

`MEDIUM SPEED OPERATION : 12MHz (typ.) CLOCK RATE AT VDD - VSS = 10V
`FULLY STATIC OPERATION
`8 MASTER-SLAVE FLIP-FLOPS PLUS INPUT AND OUTPUT BUFFERING
`HIGH NOISE IMMUNITY .QUIESCENT CURRENT SPECIFIED TO 20V FOR HCC DEVICE
`INPUT CURRENTOF 100nA AT 18V AND 25°C FOR HCC DEVICE
`100% TESTEDFOR QUIESCENT CURRENT
`5V, 10V, AND 15V PARAMETRIC RATINGS
`MEETSALLREQUIREMENTSOFJEDECTENTATIVE STANDARD NO. 13A, "STANDARD SPECIFICATIONS FOR DESCRIPTION OF "B" SERIESCMOS DEVICES"

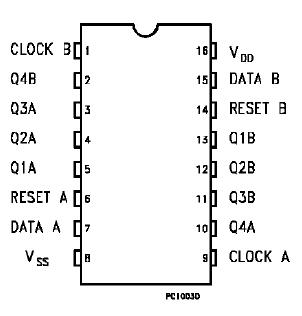

Pinout




Specifications

Symbol	Parameter	Value	Unit
VDD*	Supply Voltage :HCC Types HCF Types	0.5 to + 20 0.5 to + 18	V V
Vi	Input Voltage	0.5 to VDD + 0.5	V
II	DC Input Current (any one input)	± 10	mA
Ptot	Total Power Dissipation (per package) Dissipation per Output Transistor for Top = Full Package-temperature Range	200 100	mW mW
Top	Operating Temperature : HCC Types HCF Types	55 to + 125 40 to + 85
Tstg	Storage Temperature	65 to + 150

Description

In the HCC/HCF4015B series,   the HCC4015B (extended temperature range) and HCF4015B (intermediate temperature range) are monolithic integrated circuits, available in 16-lead dual in-line plastic or ceramic package and plastic micropackage.

The HCC/HCF4015B consists of two identical, independent, 4-stageserial-input/parallel-output registers. Each register has independent CLOCK and RESET inputs as well as a single serial DATA input. "Q" outputsare available fromeach of the four stageson both registers. All register stages are D-type,master-slave flip-flops. The logic level present at the DATA input is transferred into the first register stage and shifted over one stage at each positive-going clock transition. Resetting of all stages is accomplished by ahigh level on the reset line. Register expansion to 8 stages using one HCC/HCF4015B package, or to more than 8 stagesusingadditional HCC/HCF4015B's ispossible.
