HCF40107B

Features:

`32 TIMES STANDARD B-SERIES OUTPUT CURRENT DRIVE SINKING CAPABILITY 136mA TYP. @VDD = 10V, VDS = 1V
`QUIESCENT CURRENT SPECIFIED AT 20V FOR HCC DEVICE
`5V, 10V, AND 15V PARAMETRIC RATINGS
`INPUT CURRENTOF 100nA AT 18V AND 25°C FOR HCC DEVICE
`100% TESTEDFOR QUIESCENT CURRENT
`MEETSALLREQUIREMENTSOFJEDECTENTATIVE STANDARD N°. 13A, "STANDARD SPECIFICATIONS FOR DESCRIPTION OF "B" SERIESCMOS DEVICES"

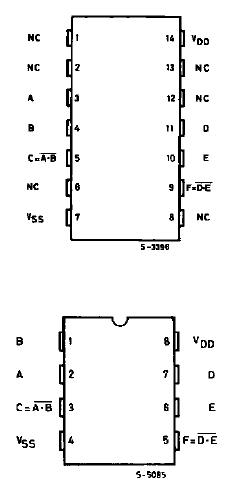

Pinout




Specifications

Symbol	Parameter	Value	Unit
VDD*	Supply Voltage :HCC Types HCF Types	0.5 to + 20 0.5 to + 18	V V
Vi	Input Voltage	0.5 to VDD + 0.5	V
II	DC Input Current (any one input)	± 10	mA
Ptot	Total Power Dissipation (per package) Dissipation per Output Transistor for Top = Full Package-temperature Range	200 100	mW mW
Top	Operating Temperature : HCC Types HCF Types	55 to + 125 40 to + 85
Tstg	Storage Temperature	65 to + 150

Description

The HCC40107B (extended temperature range) and HCF40107B (intermediate temperature range) are monolithic integrated circuits, available in 14- lead dual in-line ceramic package 8-lead minidip plastic package and 8-lead plastic micropackage.

The HCC/HCF40107B is a dual 2-input NAND buffer/driver containing two independent 2-input NAND buffers with open-drain single n-channel transistor outputs. This device features a wired-OR capability and high output sink current capability (136mA typ. at VDD = 10V, VDS = 1V).
