HCF4009UB

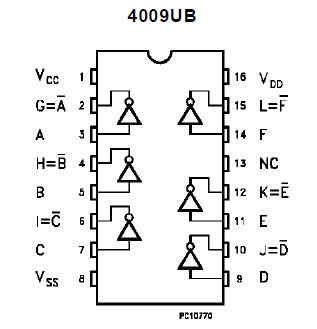

Pinout




Specifications

Symbol	Parameter	Value	Unit
VDD *	Supply Voltage: HCC Types	-0.5 to +20	V
	HCF Types	-0.5 to +18	V
Vi	Input Voltage	-0.5 to VDD + 0.5	V
II	DC Input Current (any one input)	± 10	mA
Ptot	Total Power Dissipation (per package)	200	mW
	Dissipation per Output Trans
	for Top = Full Package Temperature Range	100	mW
Top	Operating Temperature: HCC Types	-55 to +125
	Types	-40 to +85
Tstg	Storage Temperature	-65 to +150

Stressesabove those listedunder "Absolute Maximum Ratings"may cause permanent damage to thedevice. This isa stress ratingonly and functional operation of the device at these or any other conditions above those indicated in theoperational sections of this specification is not implied. Exposure to absolute maximum rating conditions for external periods may affect device reliability.
* All voltage values are referred to VSS pin voltage.

Description

The HCC4009UB/4010B (extended temperature range) and the HCF4009UB/4010B (intermediate temperature range) are monolithic integrated circuits available in 16-lead dual in line plastic or ceramic packages and plastic micropackage.

The HCC/HCF4009UB/4010B are inverting and non-inverting Hex Buffer/Converters, respectively. Both devices can be used as CMOS to TTL or DTL logic-level converters, as current "sink" or "source" drivers or as multiplexer (1 to 6).

HCC/HCF4009UB/4010B are prefered replacements for 4009UB and 4010B, respectively, in buffer applications.
