HCF4002B

Features: · PROPAGATION DELAY TIME : tPD = 50ns (TYP.) at VDD = 10V CL = 50pF· BUFFERED INPUTS AND OUTPUTS· STANDARDIZED SYMMETRICAL OUTPUT CHARACTERISTICS· QUIESCENT CURRENT SPECIFIED UP TO 20V· 5V, 10V AND 15V PARAMETRIC RATINGS· INPUT LEAKAGE CURRENT II = 100nA (MAX) AT VDD = 18V TA = 25°C· 100...

product image

HCF4002B Picture
See larger image
SeekIC No. : 004359600 Detail

HCF4002B: Features: · PROPAGATION DELAY TIME : tPD = 50ns (TYP.) at VDD = 10V CL = 50pF· BUFFERED INPUTS AND OUTPUTS· STANDARDIZED SYMMETRICAL OUTPUT CHARACTERISTICS· QUIESCENT CURRENT SPECIFIED UP TO 20V· 5V...

HCF4002B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HCF4002B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· PROPAGATION DELAY TIME : tPD = 50ns (TYP.) at VDD = 10V CL = 50pF
· BUFFERED INPUTS AND OUTPUTS
· STANDARDIZED SYMMETRICAL OUTPUT CHARACTERISTICS
· QUIESCENT CURRENT SPECIFIED UP TO 20V
· 5V, 10V AND 15V PARAMETRIC RATINGS
· INPUT LEAKAGE CURRENT II = 100nA (MAX) AT VDD = 18V TA = 25°C
· 100% TESTED FOR QUIESCENT CURRENT
· MEETS ALL REQUIREMENTS OF JEDEC JESD13B " STANDARD SPECIFICATIONS FOR DESCRIPTION


Pinout

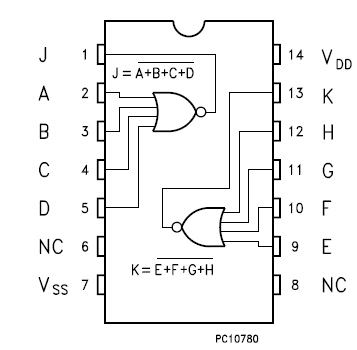

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VDD
 Supply Voltage
-0.5 to +22
V
VI
 DC Input Voltage
-0.5 to VDD + 0.5
V
II
 DC Input Current
± 10
mA
PD
 Power Dissipation per Package
200
mW
Power Dissipation per Output Transistor
100
mW
TOP
 Operating Temperature
-55 to +125
Tstg
 Storage Temperature
-65 to +150



Description

The HCF4002B is a monolithic integrated circuit fabricated in Metal Oxide Semiconductor technology available in DIP and SOP packages. The HCF4002B DUAL 4-INPUT NOR GATE provides the system designer with direct implementation of the NOR function and supplement the existing family of CMOS gates. All inputs and outputs are buffered.
