HCC4081B

Features:

`MEDIUM SPEED OPERATION tPLH = 85ns (typ.) ; tPHL = 65ns (typ.) AT 10V
`QUIESCENT CURRENT SPECIFIED TO 20V FOR HCC DEVICE .5V, 10V, AND 15V PARAMETRIC RATINGS
`INPUT CURRENT OF 100nA AT 18V AND 25°C FOR HCC DEVICE
`100% TESTEDFOR QUIESCENT CURRENT
`MEETSALLREQUIREMENTSOFJEDECTENTATIVESTANDARDN °13A, "STANDARD SPECIFICATIONS FOR DESCRIPTION OF "B" SERIESCMOS DEVICES"

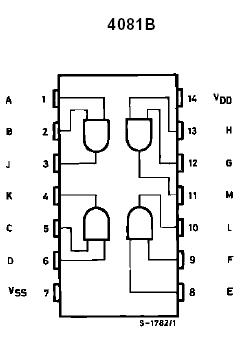

Pinout

Specifications

Symbol	Parameter	Value	Unit
VDD*	Supply Voltage :HCC Types HCF Types	0.5 to + 20 0.5 to + 18	V V
Vi	Input Voltage	0.5 to VDD + 0.5	V
II	DC Input Current (any one input)	± 10	mA
Ptot	Total Power Dissipation (per package) Dissipation per Output Transistor for Top = Full Package-temperature Range	200 100	mW mW
Top	Operating Temperature : HCC Types HCF Types	55 to + 125 40 to + 85
Tstg	Storage Temperature	65 to + 150

Description

In the HCC/HCF4073B, 4081B and 4082B series, the HCC4073B, HCC4081B and HCC4082B (extended temperature range) and the HCF4073B, HCF4081B and HCF4082B (intermediate temperature range) are monolithic integrated circuits avail- able in 14-lead dual in-line plastic or ceramic package and plastic micro package.

The HCC/HCF4073B, 4081B and 4082B AND gates provide the system designer with direct im-
