HCC4007UB

Features:

`STANDARDIZED SYMMETRICAL OUTPUT CHARACTERISTICS
`MEDIUM SPEED OPERATION tPHL, tPLH =30ns (typ.) AT 10V
`QUIESCENT CURRENT SPECIFIED TO 20V FOR HCC DEVICE
`INPUT CURRENT OF 100nA AT 18V AND25 FOR HCC DEVICE
`100% TESTEDFOR QUIESCENT CURRENT
`MEETSALLREQUIREMENTSOFJEDECTENTATIVE STANDARD No 13A, "STANDARD SPECIFICATIONS FOR DESCRIPTION OF B SERIESCMOS DEVICES"

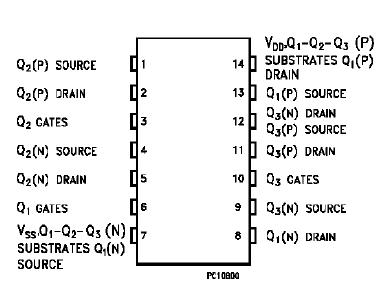

Pinout




Specifications

Symbol	Parameter	Value	Unit
VDD*	Supply Voltage :HCC Types HCF Types	0.5 to + 20 0.5 to + 18	V V
Vi	Input Voltage	0.5 to VDD + 0.5	V
II	DC Input Current (any one input)	± 10	mA
Ptot	Total Power Dissipation (per package) Dissipation per Output Transistor for Top = Full Package-temperature Range	200 100	mW mW
Top	Operating Temperature : HCC Types HCF Types	55 to + 125 40 to + 85
Tstg	Storage Temperature	65 to + 150

Description

The HCC4007UB is a monolithic integrated circuit, available in 14-lead dual in-line plastic or ceramic pxckage and plastic micropackage.

The HCC4007UB typeis comprised of three n-channel and three p-channel enhancement type MOS transistors. The transistor elements are accessible through the package terminals to provide a convenient means for constructing the various typical circuits as shown in typical applications. More complex functions are possible using multiple packages. Numbers shown in parentheses indicate terminals that are connected together to form the varius configurations listed.
