Product Details

Description



Features:

`LOW ON RESISTANCE: 125W (typ.) OVER 15 Vp-p SIGNAL INPUT RANGE FOR VDD - VSS = 15V
`HIGH OFF RESISTANCE: CHANNEL LEAKAGE OF ±10pA (typ.) @ VDD - VSS = 10V
`MATCHED SWITCH CHARACTERISTICS: DRON = 5W(typ.) FOR VDD - VSS = 15V
`VERY LOW QUIESCENT POWER DISSIPATION UNDER A DIGITAL CONTROL INPUT AND SUPPLY CONDITIONS: 0.2mW (typ.) @ VDD -VSS = 10V
`BINARY ADDRESSDECODING ON CHIP
`QUIESCENT CURRENT SPECIFIED TO 20V FOR HCC DEVICE
`STANDARDIZED SYMMETRICAL OUTPUT CHARACTERISTICS
`5V, 10V AND 15V PARAMETRIC RATINGS
`INPUT CURRENT OF 100nA AT 18V AND25 FOR HCC DEVICE
`100% TESTEDFOR QUIESCENT CURRENT
`MEETSALLREQUIREMENTSOFJEDECTENTATIVE STANDARD No 13A, "STANDARD SPECIFICATIONS FOR DESCRIPTION OF B SERIE CMOS DEVICES"



Pinout

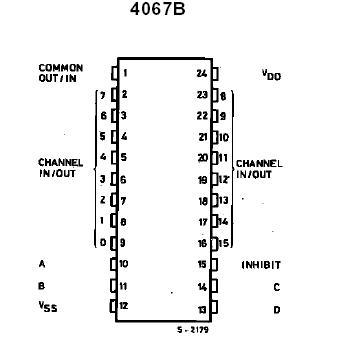

  Connection Diagram


Specifications

Symbol Parameter Value Unit
VDD* Supply Voltage :HCC Types
HCF Types
0.5 to + 20
0.5 to + 18
V
V
Vi Input Voltage 0.5 to VDD + 0.5 V
II DC Input Current (any one input) ± 10 mA
Ptot Total Power Dissipation (per package)
Dissipation per Output Transistor
for Top = Full Package-temperature Range
200
100
mW
mW
Top Operating Temperature : HCC Types
HCF Types
55 to + 125
40 to + 85

Tstg Storage Temperature 65 to + 150



Description

In the HCC/HCF4067B and HCC/HCF4097B series, the HCC4067B, HCC4097B (extended temperature range) and HCF4067B, HCF4097B (intermediate temperature range) are monolithic integrated circuits available in 24-lead dual in line plastic or ceramic package.

The HCC/HCF4067B and HCC/HCF4097B COS/MOS analog multiplexers/demultiplexers are digitally controlled analog switches having low ON impedance, low OFF leakage current and internal address decoding. in addition, the ON resistance is relatively constant over the full input-signal range.

The HCC/HCF4067B and HCC/HCF4097B ia a 16-channel multiplexer with four binary control inputs A, B, C, D, and an inhibit input, arranged so that any combination of the inputs selects one switch.

The HCC/HCF4067B and HCC/HCF4097B is a differential 8-channel multiplexerhaving three binary control inputs A, B, C, and an inhibit input. The inputs permit selection of one
