HCC4052B

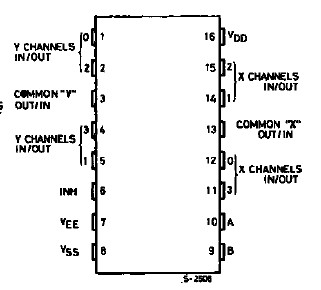

The HCC/HCF4051B, HCC/HCF4052B, and HCC/HCF4053B (extended temperature range and intermediate temperature range) are monolithic integrated circuits, available in 16-lead dual in-line plastic or ceramic package and plastic micropackage. HCC/HCF4051B, HCC/HCF4052B, and HCC/HCF4053B analog multiplexers/demultiplexers are digitally controlled analog switches having low ON impedance and very low OFF leakage tremely low quiescent power over the full VDD VSS and VDD VEE supply-voltage ranges, independent of the logic state of the control signals.When a-logic "1" is present at the inhibit input terminal all channel are off. The HCC/HCF4051B is a single 8-channel multiplexer having three binary control inputs, A, B, and C, and an inhibit input. The three binary signals select 1 of 8 channels to be turned on, and connect one of the 8 inputs to the output. The HCC/HCF4052B is a differential 4-channel multiplexerhaving twobinary control inputs, A and B,and an inhibit input. The two binary input signals select 1 of 4 pairs of channels to be turned on and connect the analog inputs to the outputs. The HCC/HCF4053B is a triple 2-channel multiplexer having three separate digital control inputs, A, B, and C, and an inhibit input. Each control input of HCC/HCF4051B, HCC/HCF4052B, and HCC/HCF4053B selects one of a pair of channels which are connected in a singlepole double-throw configuration.
