HCC4048BF

Features:

`THREE-STATE OUTPUT
`MANY LOGIC FUNCTIONS AVAILABLE IN ONE PACKAGE
`QUIESCENT CURRENT SPECIFIED TO 20V FOR HCC DEVICE
`STANDARDIZED SYMMETRICAL OUTPUT CHARACTERISTICS
`5V, 10V, AND 15V PARAMETRIC RATINGS
`INPUT CURRENT OF 100nA AT 18V AND 25°C FOR HCC DEVICE
`100% TESTEDFOR QUIESCENT CURRENT
`MEETSALLREQUIREMENTSOFJEDECTENTATIVE STANDARD N°. 13A, "STANDARD SPECIFICATIONS FOR DESCRIPTION OF "B" SERIESCMOS DEVICES"

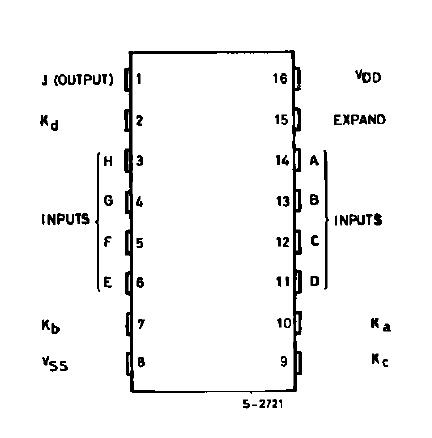

Pinout




Specifications

Symbol	Rating	Value	Unit
VDD*	Supply Voltage : HCC Types HCF Types	0.5 to + 20 0.5 to + 18	V V
Vi	Input Voltage	0.5 to VDD + 0.5	V
II	DC Input Current (any one input)	± 10	mA
Ptot	Total Power Dissipation (per package) Dissipation per Output Transistor for Top = Full Package-temperature Range	200 100	mW mW
Top	Operating Temperature : HCC Types HCF Types	55 to + 125 40 to + 85	°C °C
Tstg	Storage Temperature	65 to + 150	°C

Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only
and functional operation of the device at these orany other conditions above those indicated in the operational sections of this specification
is not implied. Exposure to absolute maximum rating conditions for external periods may affect device reliability.
* All voltages values are referred to V_SS pin voltage.


Description

The HCC/HCF4048B  (extended temperature range and intermediate temperature range) are monolithic integrated circuit, available in 16-lead dual in-line plastic or ceramic package and plastic micro package. The HCC/HCF4048B is an 8-input gate having four control inputs. Three binary control inputs - Ka, Kb, and Kc - provide the implementation of eight different logic functions. These functions are OR, NOR, AND, NAND, OR/AND, OR/NAND, AND/OR and AND/NOR. A fourth control input-Kdprovides the user with a3-state output.Whencontrol input Kd is high the output is either a logic 1 or a logic 0 depending on the inner states.When control input Kd is low, the output is an open circuit. This feature enables the user to connect this device toa common bus line. In addition to the eight input lines, an EXPAND input is provided that permits the user to increase the number of inputs to one HCC/HCF4048B. For example, two HCC/HCF4048B's can be cascaded to provide a 16-input multifunction gate. When the EXPAND input is not used, it should be connected to V_SS.
